Anti-Vibration Tables — VIP-E / VIP-AM Platforms

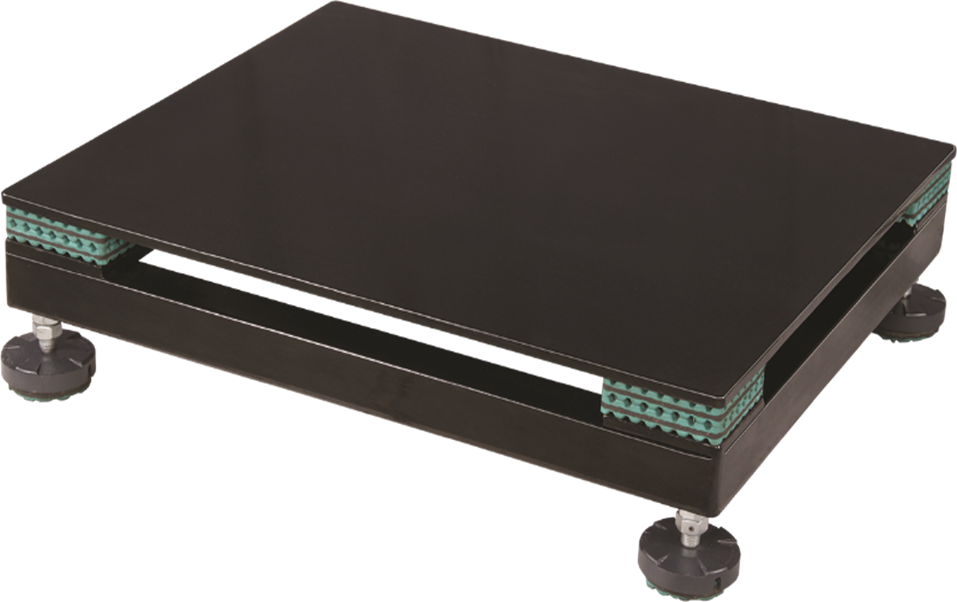

Dynemech Anti Vibration Platform , are ideal for precision lab balances / microscopes/testing & measuring or scientific instruments and other vibration sensitive equipment like probes etc. They are suitable for equipment in Testing / Quality/Medical & Biological Laboratories co-located nearby industrial units/commercial units having high degree of vibration transmission due to vehicular traffic, HVAC installations and other vibration creating equipment. Audio centres and Research laboratories may find use of Dynemech Vibration Isolation Platforms for the vibration sensitive equipments. Dynemech Anti Vibration Platform VIP-E The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets where in vibration transmission by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets. Five layers of DP exhibits a natural frequency of 7-8 Hz. which damps most of the incoming frequencies above 15 Hz.
