High Precision Alignment Mounts — Series DFL

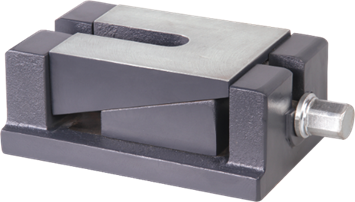

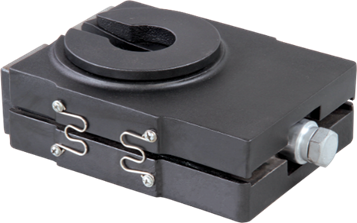

HIGH PRECISION LEVELLING & ALIGNMENT MOUNTS, Series : DFL The DLF series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grounting bolts are fixed in the foundation, Suitable for VTL long bedded CNC machines, large boring machines, plano miller etc.
11 models
Load: 4000–20000 Kg
Specifications
| S. No. | Model | Load Capacity (Kg.) | Length L (mm) | Width B (mm) | Height H (mm) | Max. Torque value (mm) | Adjustment Range (mm) | Slot Size | DFL1-S1-SP1 |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DFL1-S1-SP1-S26 | 8000 | 207 | 142 | 86 | 554 | 13 | 26 | — |
| 2 | DFL1-S1-SP1-S31 | 8000 | 207 | 142 | 86 | 554 | 13 | 31 | — |
| S. No. | Model | Load Capacity (Kg.) | Length L (mm) | Width B (mm) | Height H (mm) | Max. Torque value (mm) | Adjustment Range (mm) | Slot Size | DFL2-S1 |
| 1 | DFL2-S1-S38 | 4000 | 255 | 155 | 73 | 216 | 5 | 38 | — |
| 2 | DFL2-S1-S40 | 4000 | 255 | 155 | 73 | 216 | 5 | 40 | — |
| S. No. | Model | Load Capacity (Kg.) | Length L (mm) | Width B (mm) | Height H (mm) | Max. Torque value (mm) | Adjustment Range (mm) | DFL1-S3 | — |
| 1 | DFL1-S3 | 12200 | 188 | 140 | 68.3 | 603 | 6 | — | — |
| S. No. | Model | Load Capacity (Kg.) | Length L (mm) | Width B (mm) | Height H (mm) | Max. Torque value (mm) | Adjustment Range (mm) | DFL4 | — |
| 1 | DFL4 | 17000 | 340 | 200 | 113 | 1090 | 15 | — | — |
| S. No. | Model | Load Capacity (Kg.) | Length L (mm) | Width B (mm) | Height H (mm) | Max. Torque value (mm) | Adjustment Range (mm) | DFL3-S2 | — |
| 1 | DFL3-S2 | 20000 | 315 | 150 | 140 | 1748 | 8 | — | — |

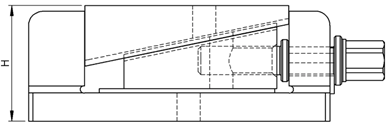

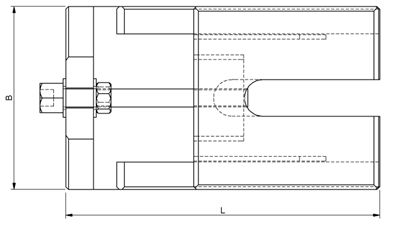

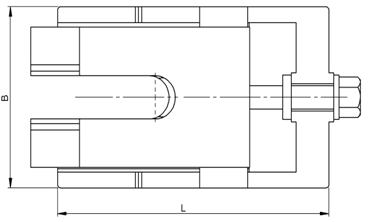

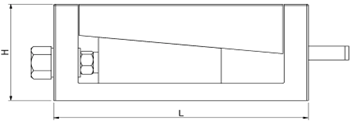

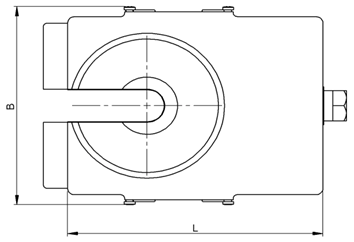

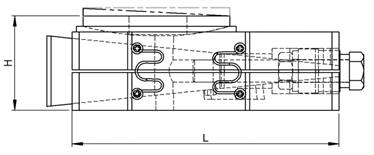

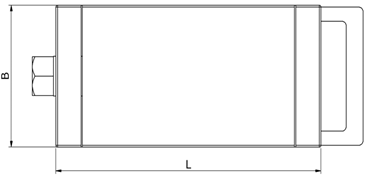

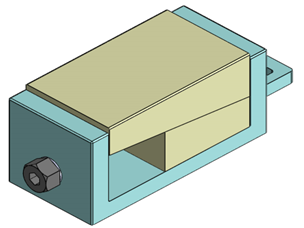

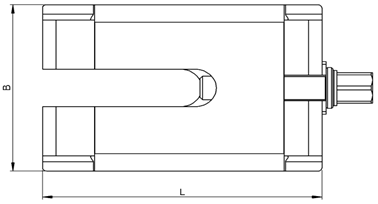

Technical Drawings
