Insulation Plates — Ds / Dhs / Dh Series
Dynemech Insulation Plates are made from the compound of Nitrile Rubber, Cork, Synthetic Fibre which at varying compositions gives different natural frequencies for providing vibration damping solution to almost every machine tool. These sheets can be cut to any small size as per requirements wants using bandsaw. Designed to take high shock and vibrations, this multilayeres fabric
20 models
Load: 1.5–300 Kg
Specifications
| TYPE | LOAD Kg./Sq.cm. | Thickness (unloaded) mm | Coefficient of Friction | Natural Frequency (Hz) | Size Max. (LxB) | Profile | Weight (Kg) (500x500 mm) |
|---|---|---|---|---|---|---|---|
| Dhs6-ML | 5,6,8,10,12,15,20,25,50,65 | 5,6,8,10,12,15,20,25,50,65 | 0.7 | 15-20 | 500X500 | Both Side Plain | — |
| Du-10-NP | 10 | 10 | 0.9 | 18-35 | 500X500 | Single | — |
| Model | Length L (mm) | Length L (mm) | Width B (mm) | Thickness H (mm) | Natural Frequency (Hz) | Coefficient of Friction | — |
| DE-12 | 100 | 100 | 100 | 12 | 10 | 0.8 | — |
| DE-12 | 150 | 150 | 150 | 12 | 10 | 0.8 | — |
| DE-12 | 300 | 300 | 300 | 12 | 10 | 0.8 | — |
| DE-25 | 100 | 100 | 100 | 25 | 7 | 0.8 | — |
| DE-25 | 150 | 150 | 150 | 25 | 7 | 0.8 | — |
| DE-25 | 300 | 300 | 300 | 25 | 7 | 0.8 | — |
| Code | Specific Gravity gm/cm1 | Specific Gravity gm/cm1 | Hardness (+/-5) Shore A | Tensile Strength (min) Kg/cm2 | Elongation at break (min) % | Abrasion mm2 10N | Compression set at 70° C for 22 hrs |
| DNR-2 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |
| DNR-3 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |
| DNR-4 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |
| DNR-5 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |
| DNR-8 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |
| DNR-10 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |
| DNR-15 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |
| DNR-20 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |
| DNR-25 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |
| DNR-50 | 1.5 | 1.5 | 70 | 35 | 250 | 450 | — |

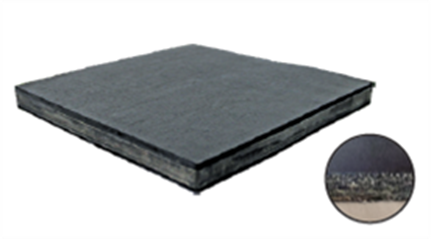

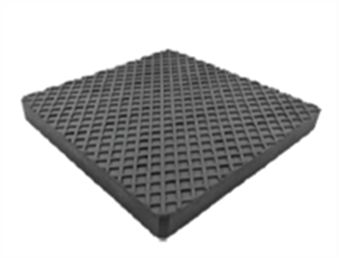

Technical Drawings
Applications
-30 to +70
Designed to take high shock and vibrations, this multilayeres fabric
High grip slim pads offers high lateral stability, all weather vibration isolation pads
Temp.
Range °C
