Specialty Mounts — Series DGF

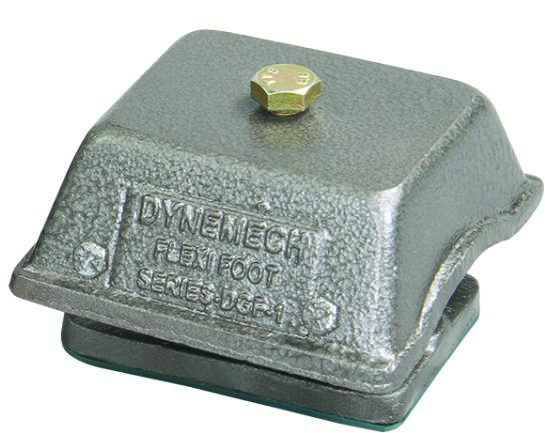

Dynemech Flexi Foot Mounts, Series DGF is well suited for machines requiring vibration damping in both compression and shear. An anti skid plate is provided in the base of the mount to prevent machine walking. These mounts can also be anchored to the floor through the holes provided in the base for machines producing high unbalance forces.

35 models Load: 6–7 Kg
Series DGF — product image
Series DGF — image 2

Specifications

S. NO. MODEL Max Load (Kg) L (mm) B (mm) H (mm) Bolt CC (mm) d Ø Natural Frequency at Max. Load (Hz)
1 DGF1-A 6 134 127 82 M12 85 13 6
2 DGF1-B 6 134 127 82 M12 85 13 6
3 DGF1-C 6.5 134 127 82 M12 85 13 6.5
4 DGF1-D 6.5 134 127 82 M12 85 13 6.5
5 DGF1-E 6.5 134 127 82 M12 85 13 6.5
6 DGF2-A 6.5 230 205 109 M16 159 18 6.5
7 DGF2-B 6.5 230 205 109 M16 159 18 6.5
8 DGF2-C 7 230 205 109 M16 159 18 7
9 DGF2-D 7 230 205 109 M16 159 18 7
10 DGF2-E 7 230 205 109 M16 159 18 7
11 DGF1-A-RTH 6 134 127 74 M16 90 13 6
12 DGF1-B-RTH 6 134 127 74 M16 90 13 6
13 DGF1-C-RTH 6.5 134 127 74 M16 90 13 6.5
14 DGF1-D-RTH 6.5 134 127 74 M16 90 13 6.5
15 DGF1-E-RTH 6.5 134 127 74 M16 90 13 6.5
16 DGF2-A-RTH 6.5 230 205 109 M16 165 18 6.5
17 DGF2-B-RTH 6.5 230 205 109 M16 165 18 6.5
18 DGF2-C-RTH 7 230 205 109 M16 165 18 7
19 DGF2-D-RTH 7 230 205 109 M16 165 18 7
20 DGF2-E-RTH 7 230 205 109 M16 165 18 7
21 DGF2-A-RTH-Da1 6.5 230 205 111 M16 165 18 6.5
22 DGF2-B-RTH-Da1 6.5 230 205 111 M16 165 18 6.5
23 DGF2-C-RTH-Da1 7 230 205 111 M16 165 18 7
24 DGF2-D-RTH-Da1 7 230 205 111 M16 165 18 7
25 DGF2-E-RTH-Da1 7 230 205 111 M16 165 18 7
26 DGF1-A-UNM 6 129 129 72 M12 89 11 6
27 DGF1-B-UNM 6 129 129 72 M12 89 11 6
28 DGF1-C-UNM 6.5 129 129 72 M12 89 11 6.5
29 DGF1-D-UNM 6.5 129 129 72 M12 89 11 6.5
30 DGF1-E-UNM 6.5 129 129 72 M12 89 11 6.5
31 DGF1.5-A 7 180 180 107 M16 150 12 7
32 DGF1.5-B 7 180 180 107 M16 150 12 7
33 DGF1.5-C 7 180 180 107 M16 150 12 7
34 DGF1.5-D 7 180 180 107 M16 150 12 7
35 DGF1.5-E 7 180 180 107 M16 150 12 7

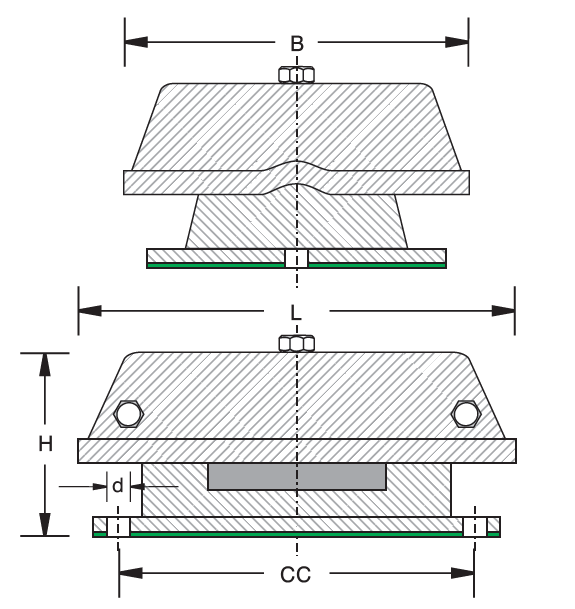

Technical Drawings

Series DGF — technical drawing 1
