Specialty Mounts — Series DJM

45 models Load: 440–2500 Kg
Series DJM — product image
Series DJM — image 2
Series DJM — image 3

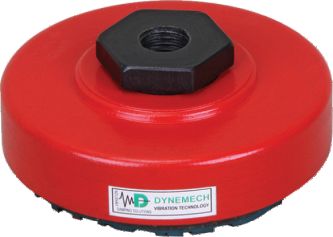

Series DJM — image 4

Specifications

S. NO. Model Load Capacity Kg/pc Height (H) (mm) Dia (D) (mm) G (mm) HEX (SW) (mm) Temperature range (°C) Levelling Adjustment
1 DJM0-G-u-FG-RD 850 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
2 DJM1-G-u-FG-RD 1500 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
3 DJM2-G-u-FG-RD 2500 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
4 DJM0-B-u-FG-RD 850 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
5 DJM1-B-u-FG-RD 1500 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
6 DJM2-B-u-FG-RD 2500 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
7 DJM0-F-u-FG-RD 850 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
8 DJM1-F-u-FG-RD 1500 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
9 DJM2-F-u-FG-RD 2500 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
10 DJM0-T-u-FG-RD 850 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
11 DJM1-T-u-FG-RD 1500 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
12 DJM2-T-u-FG-RD 2500 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
13 DJM0-D-u-FG-RD 850 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
14 DJM1-D-u-FG-RD 1500 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
15 DJM2-D-u-FG-RD 2500 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
16 DJM0-G-m-FG-RD 440 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
17 DJM1-G-m-FG-RD 860 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
18 DJM2-G-m-FG-RD 1680 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
19 DJM0-B-m-FG-RD 440 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
20 DJM1-B-m-FG-RD 860 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
21 DJM2-B-m-FG-RD 1680 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
22 DJM0-F-m-FG-RD 440 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
23 DJM1-F-m-FG-RD 860 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
24 DJM2-F-m-FG-RD 1680 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
25 DJM0-T-m-FG-RD 440 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
26 DJM1-T-m-FG-RD 860 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
27 DJM2-T-m-FG-RD 1680 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
28 DJM0-D-m-FG-RD 440 49 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
29 DJM1-D-m-FG-RD 860 49 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
30 DJM2-D-m-FG-RD 1680 49 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
31 DJM0-G-i-FG-RD 610 59 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
32 DJM1-G-i-FG-RD 1210 59 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
33 DJM2-G-i-FG-RD 2310 59 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
34 DJM0-B-i-FG-RD 610 59 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
35 DJM1-B-i-FG-RD 1210 59 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
36 DJM2-B-i-FG-RD 2310 59 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
37 DJM0-F-i-FG-RD 610 59 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
38 DJM1-F-i-FG-RD 1210 59 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
39 DJM2-F-i-FG-RD 2310 59 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
40 DJM0-T-i-FG-RD 610 59 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
41 DJM1-T-i-FG-RD 1210 59 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
42 DJM2-T-i-FG-RD 2310 59 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18
43 DJM0-D-i-FG-RD 610 59 90 M20X2.5 (Length 38mm) 46 From -16 to 90 18
44 DJM1-D-i-FG-RD 1210 59 120 M20X2.5 (Length 38mm) 46 From -16 to 90 18
45 DJM2-D-i-FG-RD 2310 59 160 M20X2.5 (Length 38mm) 62 From -16 to 90 18

Technical Drawings

Series DJM — technical drawing 1

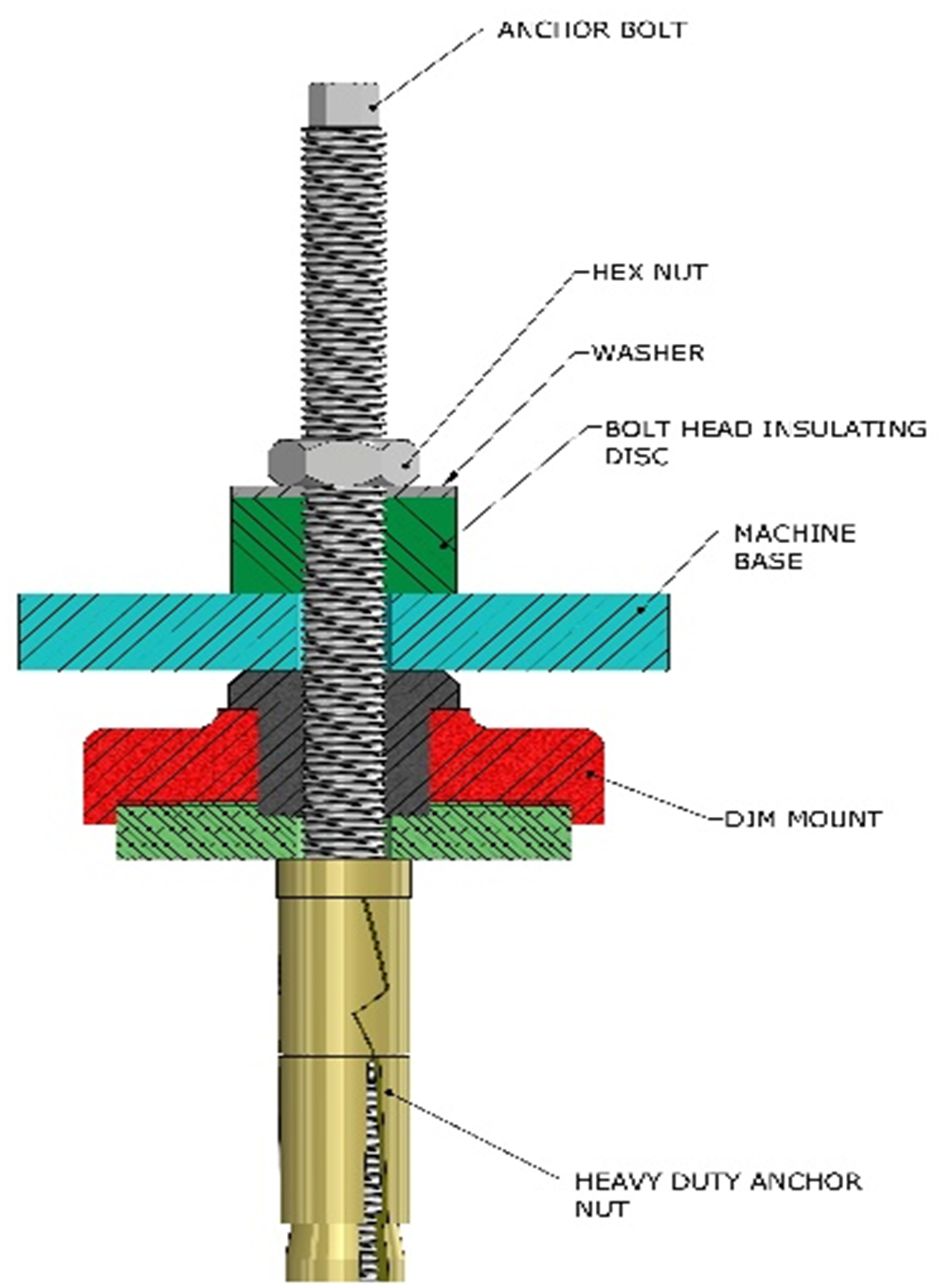

Series DJM — technical drawing 2

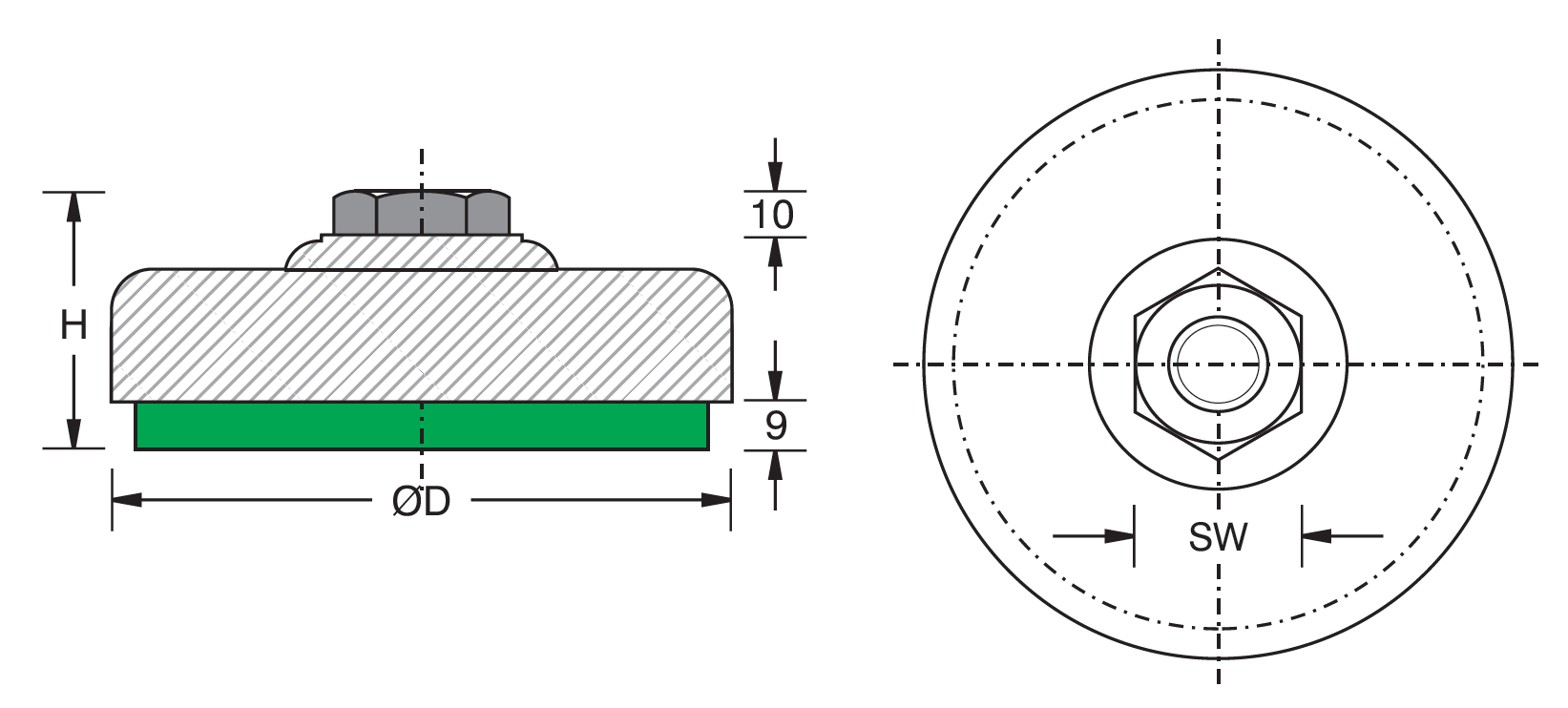

Series DJM — technical drawing 3

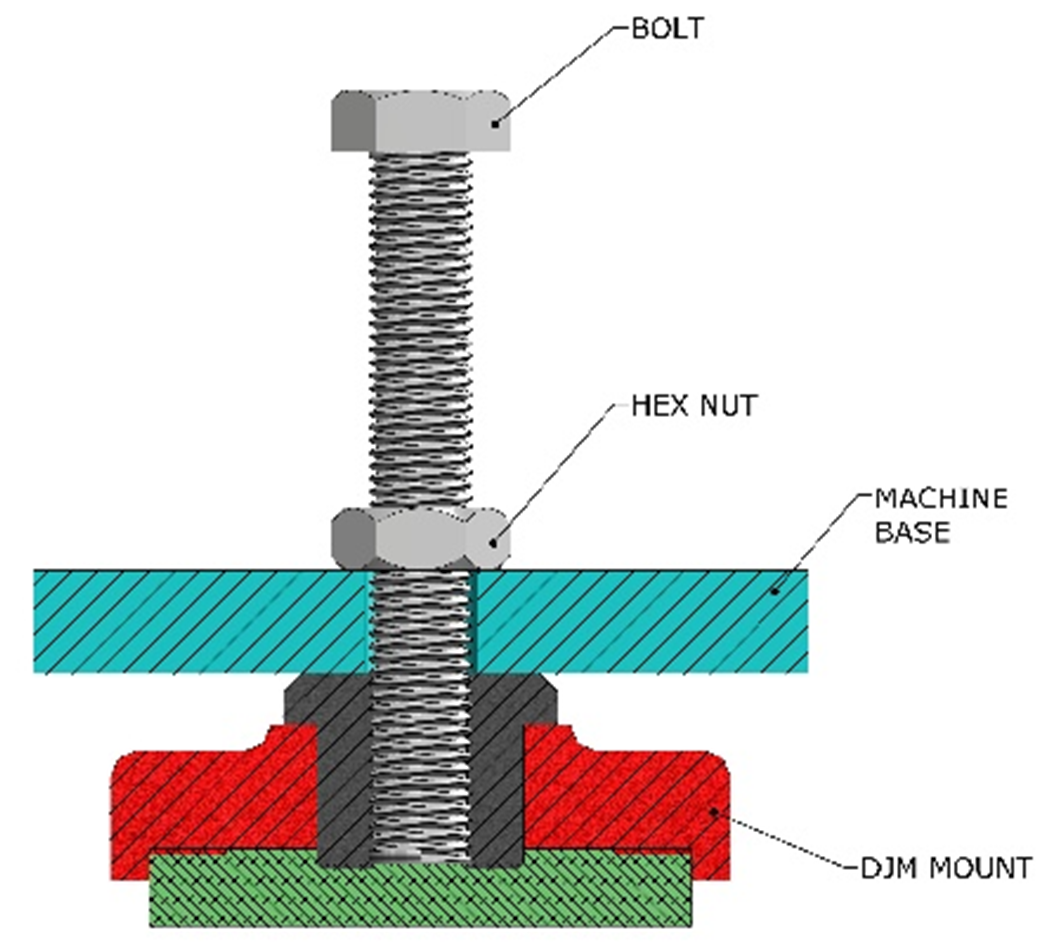

Series DJM — technical drawing 4
Series DJM — technical drawing 5
