Specialty Mounts — Series DLKR
DLKR mounts provides a large rectangular surface to support machines along with the levelling adjustment. The longer side is installed parallel to the line of operation of the horizontal force generated by the machine thus ensuring better grip and higher shock isolation. Note : Auto Black or Zinc Coated Bolt variants are available.
2 models
Load: 4000–5600 Kg
Specifications
| S.No. | Model | Load kg/pc | length L (mm) | Width b (mm) | Height H (mm) | Thread size G (mm) | h (mm) | Levelling adjustment (mm) |
|---|---|---|---|---|---|---|---|---|
| 1 | DLKR-03 | 4000 | 200 | 150 | 62 | M20x1.5x150 | 5 | 32 |
| 2 | DLKR-04 | 5600 | 200 | 200 | 58 | M20x2.5x150 | 20 | 15 |

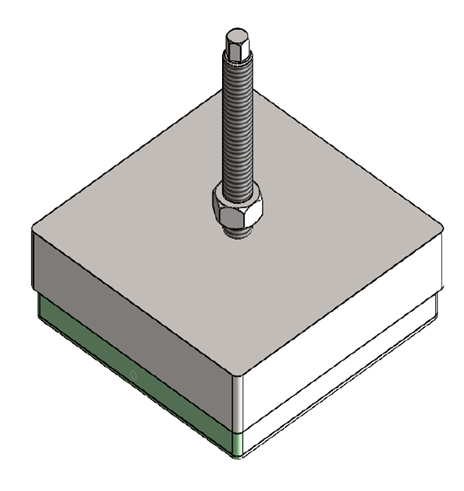

Technical Drawings
