Specialty Mounts — Series DR

DYNEMECH Series DR, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

30 models Load: 8–45 Kg
Series DR — product image

Specifications

Model Load Capacity (Kg/pc) d (mm) Dia (D) (mm) H (mm) Coeff. of Friction against Concrete Natural Frequency at Max. Load (Hz)
DR1-u 18 87 109 100 0.9 18
DR2-u 18 108 150 100 0.9 18
DR3-u 18 136 170 100 0.9 18
DR4-u 18 161 210 100 0.9 18
DR5-u 18 185 240 100 0.9 18
DR6-u 18 215 270 100 0.9 18
DR1-m 30 87 109 100 0.7 30
DR2-m 30 108 150 100 0.7 30
DR3-m 30 136 170 100 0.7 30
DR4-m 30 161 210 100 0.7 30
DR5-m 30 185 240 100 0.7 30
DR6-m 30 215 270 100 0.7 30
DR1-h 45 87 109 100 0.6 45
DR2-h 45 108 150 100 0.6 45
DR3-h 45 136 170 100 0.6 45
DR4-h 45 161 210 100 0.6 45
DR5-h 45 185 240 100 0.6 45
DR6-h 45 215 270 100 0.6 45
DR1-s2 8 87 109 160 0.8 8
DR2-s2 8 108 150 160 0.8 8
DR3-s2 8 136 170 160 0.8 8
DR4-s2 8 161 210 160 0.8 8
DR5-s2 8 185 240 160 0.8 8
DR6-s2 8 215 270 160 0.8 8
DR1-s1 15 87 109 155 0.8 15
DR2-s1 15 108 150 155 0.8 15
DR3-s1 15 136 170 155 0.8 15
DR4-s1 15 161 210 155 0.8 15
DR5-s1 15 185 240 155 0.8 15
DR6-s1 15 215 270 155 0.8 15

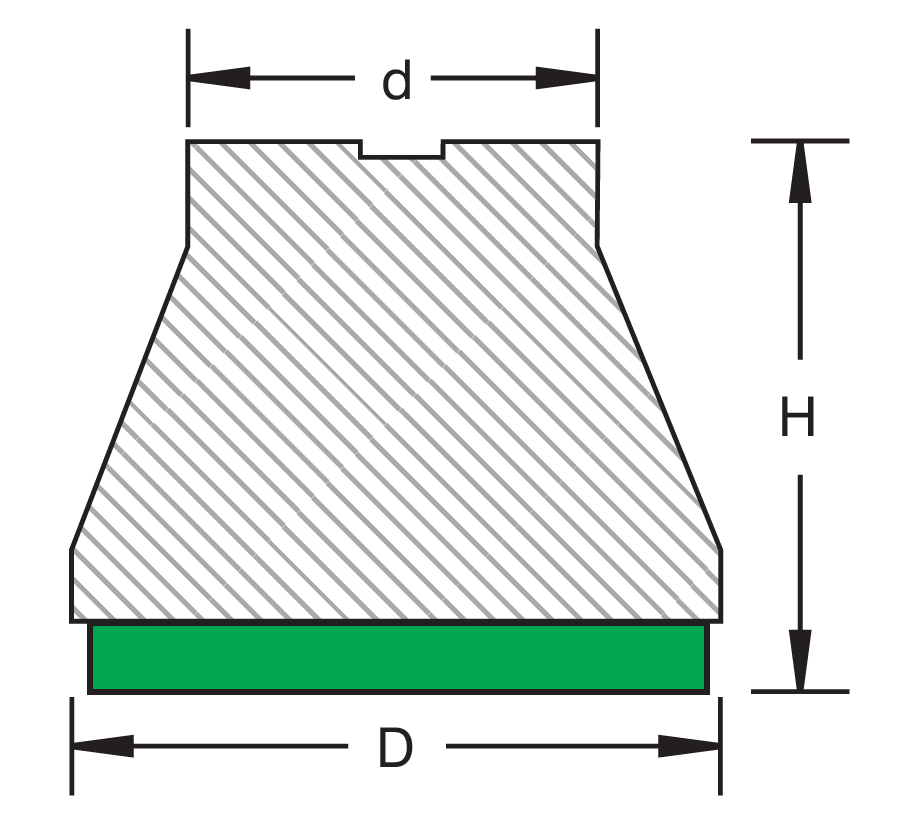

Technical Drawings

Series DR — technical drawing 1

Applications

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Very Heavy and long bed machines, long machining centres, planners etc.
