Specialty Mounts — Series DRC

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

24 models Load: 8–45 Kg
Series DRC — product image

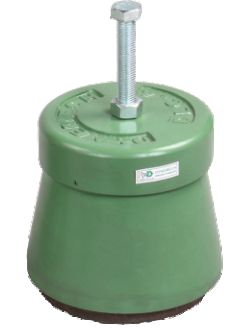

Series DRC — image 2

Specifications

Model Load Capacity (Kg/pc) Bolt Size (mm) d (mm) Dia (D) (mm) H (mm) Adjustment (mm) Coeff. of Friction against Concrete Natural Frequency at Max. Load (Hz)
DRC1-u 18 M12X100 98 109 100/150 8 0.9 18
DRC2-u 18 M16X100 125 150 100/150 8 0.9 18
DRC3-u 18 M16X100 150 170 100/150 10 0.9 18
DRC4-u 18 M18X150 180 210 100/150 10 0.9 18
DRC5-u 18 M20X150 204 240 100/150 12 0.9 18
DRC6-u 18 M20X150 235 270 100/150 12 0.9 18
DRC1-m 30 M12X100 98 109 100/150 8 0.7 30
DRC2-m 30 M16X100 125 150 100/150 8 0.7 30
DRC3-m 30 M16X100 150 170 100/150 10 0.7 30
DRC4-m 30 M18X150 180 210 100/150 10 0.7 30
DRC5-m 30 M20X150 204 240 100/150 12 0.7 30
DRC6-m 30 M20X150 235 270 100/150 12 0.7 30
DRC1-h 45 M12X100 98 109 100/150 8 0.6 45
DRC2-h 45 M16X100 125 150 100/150 8 0.6 45
DRC3-h 45 M16X100 150 170 100/150 10 0.6 45
DRC4-h 45 M18X150 180 210 100/150 10 0.6 45
DRC5-h 45 M20X150 204 240 100/150 12 0.6 45
DRC6-h 45 M20X150 235 270 100/150 12 0.6 45
DRC1-s2 8 M12X100 98 109 110/160 8 0.8 8
DRC2-s2 8 M16X100 125 150 110/160 8 0.8 8
DRC3-s2 8 M16X100 150 170 110/160 10 0.8 8
DRC4-s2 8 M18X150 180 210 110/160 10 0.8 8
DRC5-s2 8 M20X150 204 240 110/160 12 0.8 8
DRC6-s2 8 M20X150 235 270 110/160 12 0.8 8

Technical Drawings

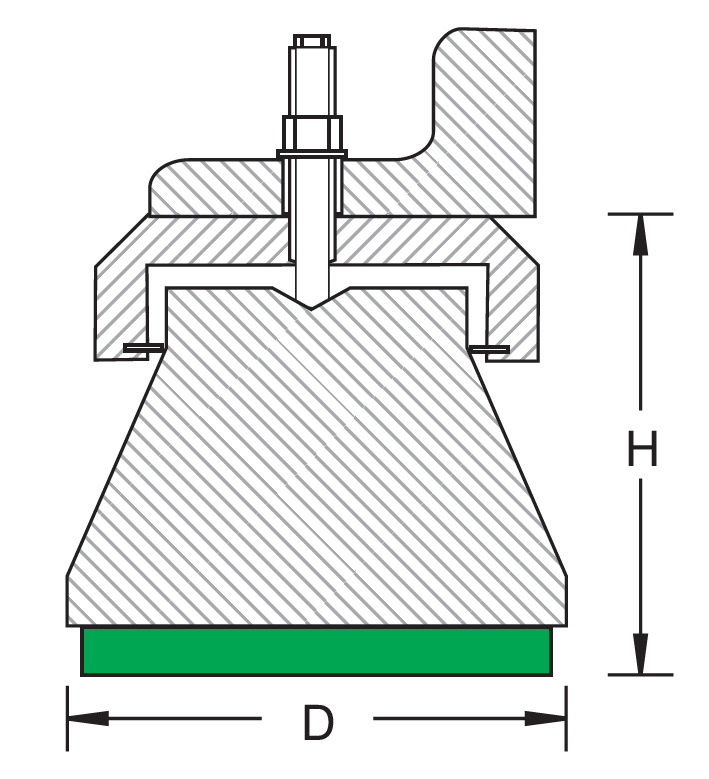

Series DRC — technical drawing 1

Applications

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Very Heavy and long bed machines, long machining centres, planners etc.
