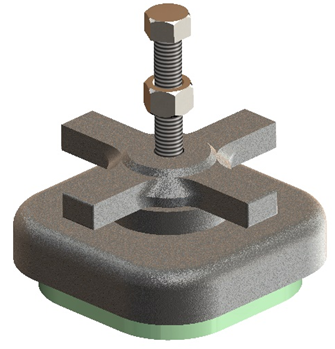

Specialty Mounts — Series DRM
2 models
Load: 1000–3300 Kg
Specifications
| S.No. | Model | Load kg/pc | length L (mm) | Width b (mm) | Height H (mm) | Levelling Adjustment |
|---|---|---|---|---|---|---|
| 1 | DRM1-150-S2 | 1000 | 150 | 150 | 77 | 20 |
| 2 | DRM2-232-S2 | 3300 | 232 | 232 | 77 | 20 |

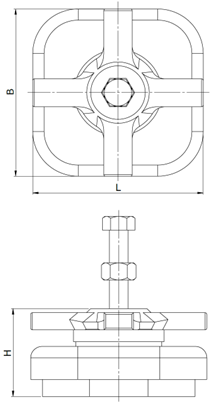

Technical Drawings
