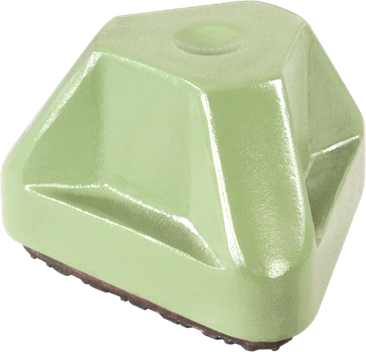

Specialty Mounts — Series DRS1

25 models Load: 300–3450 Kg

Specifications

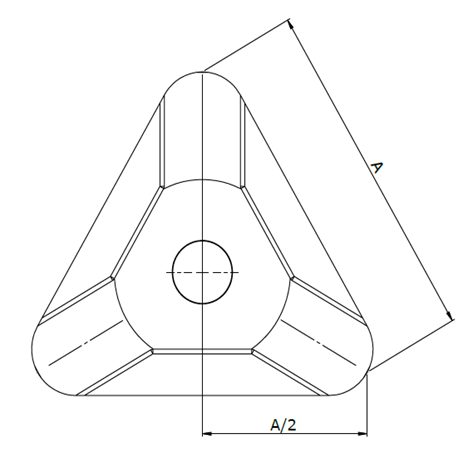

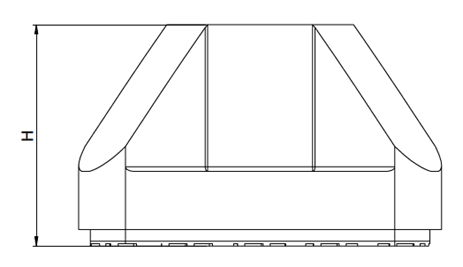

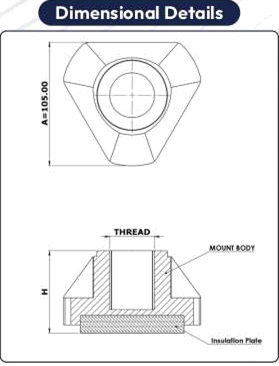

S.No.	Model	Load kg/pc	Height H (mm)	A (mm)	Thread Size	Natural Frequency	Co-efficient of friction
1	DRS1-70-m- FG-GR	600	70	105	M38	30	0.7
2	DRS1-70-h-FG-GR	1800	70	105	M38	45	0.6
3	DRS1-70-u-FG-GR	540	70	105	M38	18	0.9
4	DR51-75-s1 -FG-GR	300	75	105	M38	15	0.8
5	DRS1-80-s2-FG-GR	480	80	105	M38	8	0.8
6	DRS1-80-i-FG-GR	850	80	105	M38	8	0.8
S.No.	Model	Load kg/pc	Height H (mm)	A (mm)	Dimple	Natural Frequency	Co-efficient of friction
1	DRS2-50-M	1160	50	150	26	30	0.7
2	DRS2-95-M	1160	95	150	26	30	0.7
3	DRS2-100-M	1160	100	150	26	30	0.7
4	DRS2-50-H	3450	50	150	26	45	0.6
5	DRS2-95-H	3450	95	150	26	45	0.6
6	DRS2-100-H	3450	100	150	26	45	0.6
7	DRS2-50-U	1050	50	150	26	18	0.9
8	DRS2-95-U	1050	95	150	26	18	0.9
9	DRS2-100-U	1050	100	150	26	18	0.9
10	DRS2-55-S1	580	55	150	26	15	0.8
11	DRS2-100-S1	580	100	150	26	15	0.8
12	DRS2-105-S1	580	105	150	26	15	0.8
13	DRS2-60-S2	920	60	150	26	8	0.8
14	DRS2-105-S2	920	105	150	26	8	0.8
15	DRS2-110-S2	920	110	150	26	8	0.8
16	DRS2-60-i	1600	60	150	26	7	0.8
17	DRS2-105-i	1600	105	150	26	7	0.8
18	DRS2-110-i	1600	110	150	26	7	0.8
