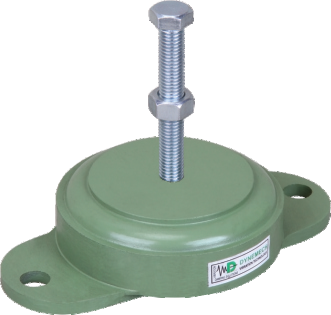

Specialty Mounts — Series DTXL / DML
Note : Bolt sizes available as optional accessories for Texl Foot Mounts.
17 models
Load: 125–500 Kg
Specifications
| Model | A (mm) | H (mm) | G (mm) | Ød (mm) | F (mm) | C (mm) | Load (Kg/pc) |
|---|---|---|---|---|---|---|---|
| DTXL-1 | 108 | 38 | M12 | 13 | 175 | 148 | 500 |
| Note : Bolt sizes available as optional accessories for Texl Foot Mounts. | — | — | — | — | — | — | — |

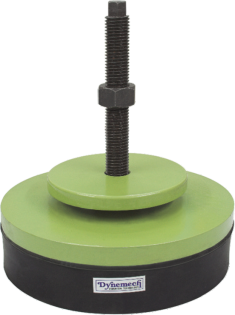

| MAC LEVEL MOUNTS Series DML | — | — | — | — | — | — | — |
| Mac Level, Series DML is suitable for high speed rotating machines having small or no axial forces. | — | — | — | — | — | — | — |
| Model | Max. Load Capacity (Kg) | D (mm) | H (mm) | d (mm) | Levelling Adjustment Range (mm) | Natural Frequency (Hz) | G |
| DML 1 | 175 | 50 | 40 | 32 | 10 | 7 | M10 |
| DML 2 | 500 | 80 | 47 | 45 | 12 | 7 | M12 |
| DML 3 | 1200 | 120 | 53 | 60 | 12 | 7 | M16 |
| DML 4 | 2000 | 160 | 58 | 90 | 20 | 8 | M16 |
| DML 5 | 4000 | 200 | 63 | 120 | 20 | 8 | M20 |
| Note : Black coating or Zinc coated bolts availability | — | — | — | — | — | — | — |
| HORIZONTAL STOPS Series DHS | — | — | — | — | — | — | — |
| Dynemech Horizontal Stop Series DHS is suitable for the shock absorption of machines having very high axial force on a light weight machine bed and for precision machines which has to be flexibly mounted but be protected from horizontal shaking due to inherent axial movements of their elements. | — | — | — | — | — | — | — |
| Model | H (mm) | L (mm) | B (mm) | a (mm) | b (mm) | e (mm) | I (mm) |
| DHS 1 | 150 | 150 | 125 | 50 | 65 | 25 | 125 |
| DHS 2 | 200 | 150 | 125 | 50 | 65 | 25 | 175 |
| DHS 3 | 200 | 175 | 150 | 60 | 75 | 30 | 215 |

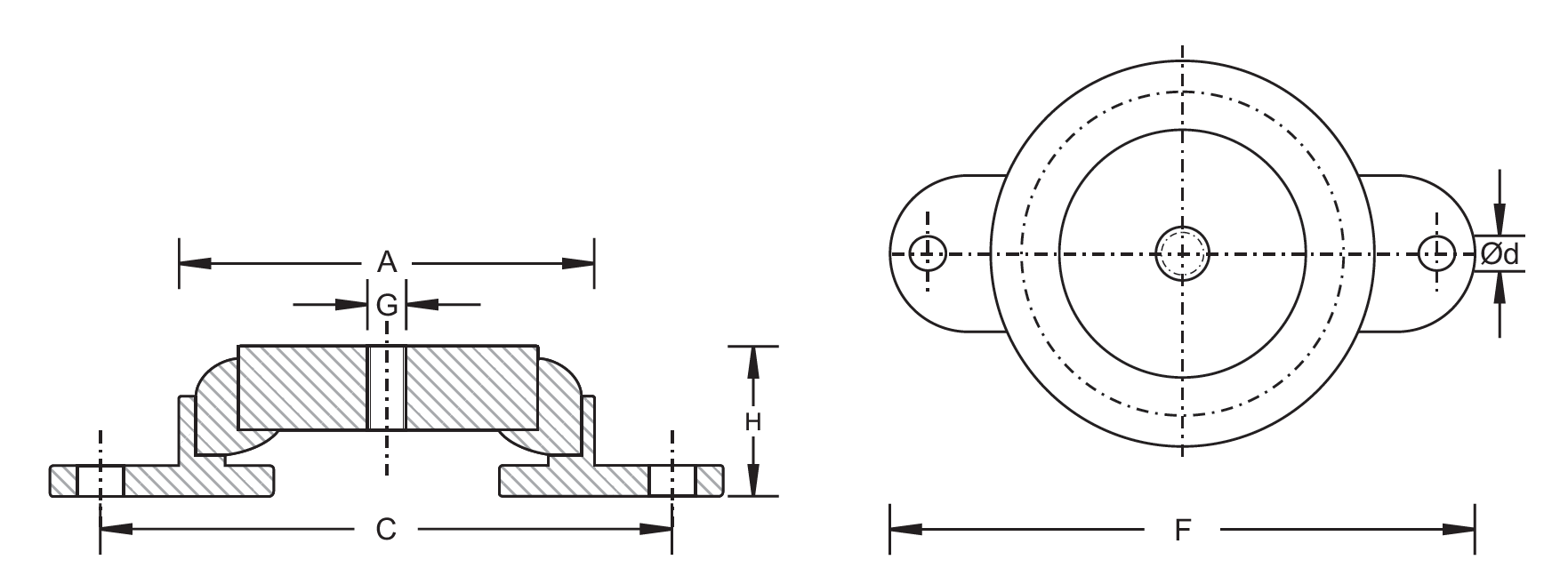

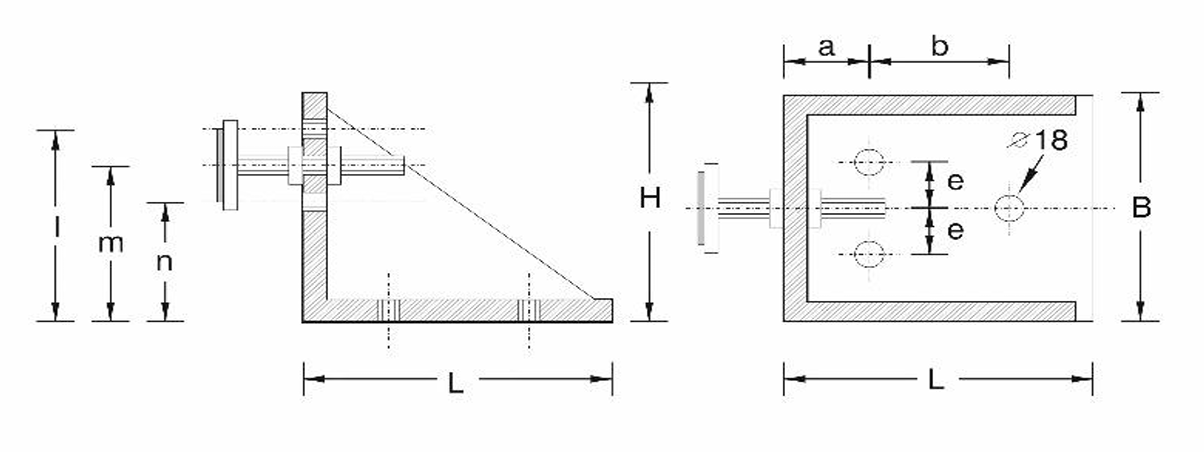

Technical Drawings
