Specialty Mounts — Series SL / SLS
Dynemech Machine Base Mounts Series SL is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. These are suitable for placing in the pocket of the machine base. Dynemech machine base mounts series SLS, developed in stainless steel finds application in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Provide vibration isolation with complete hygienic seal and corrosion resistence.
20 models
Load: 7–30 Kg
Specifications
| Model | Max. Load Capacity Kg/pc | Length (L) mm | Width (B) mm | Height (H) (mm) | Coeff. of Friction against Concrete | Natural Frequency at Max. Load (Hz) |
|---|---|---|---|---|---|---|
| SL1-u | 18 | 80 | 64 | 30 | 0.9 | 18 |
| SL2-u | 18 | 75 | 150 | 29 | 0.9 | 18 |
| SL3-u | 18 | 125 | 125 | 32 | 0.9 | 18 |
| SL4-u | 18 | 150 | 150 | 29 | 0.9 | 18 |
| SL5-u | 18 | 200 | 200 | 39 | 0.9 | 18 |
| SL1-m | 30 | 80 | 64 | 30 | 0.7 | 30 |
| SL2-m | 30 | 75 | 150 | 29 | 0.7 | 30 |
| SL3-m | 30 | 125 | 125 | 32 | 0.7 | 30 |
| SL4-m | 30 | 150 | 150 | 29 | 0.7 | 30 |
| SL5-m | 30 | 200 | 200 | 39 | 0.7 | 30 |
| SL1-i | 7 | 80 | 64 | 40 | 0.8 | 7 |
| SL2-i | 7 | 75 | 150 | 39 | 0.8 | 7 |
| SL3-i | 7 | 125 | 125 | 42 | 0.8 | 7 |
| SL4-i | 7 | 150 | 150 | 39 | 0.8 | 7 |
| SL5-i | 7 | 200 | 200 | 49 | 0.8 | 7 |
| SL1-p1 | 7 | 80 | 64 | 35 | 0.8 | 7 |
| SL2-p1 | 7 | 75 | 150 | 34 | 0.8 | 7 |
| SL3-p1 | 7 | 125 | 125 | 37 | 0.8 | 7 |
| SL4-p1 | 7 | 150 | 150 | 34 | 0.8 | 7 |
| SL5-p1 | 7 | 200 | 200 | 39 | 0.8 | 7 |

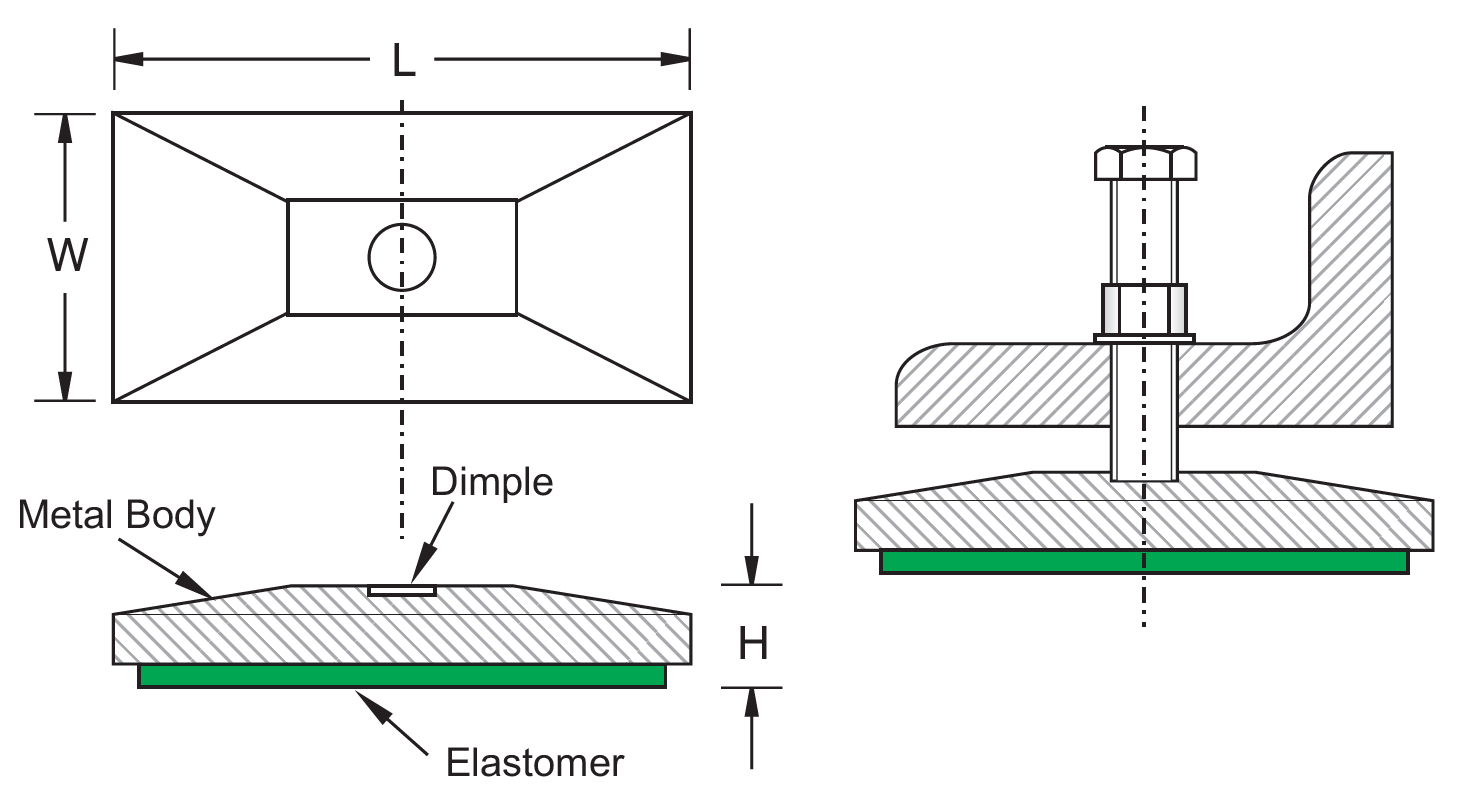

Technical Drawings
