Sandwich Mounts — Series DSM
Dynemech Sandwich Mounts Series DSM are available in various standard and customized sizes. These mounts provides support to motors, pumps and equipment installed on a machine body. These mounts provides high vibration isolation efficiency.
2 models
Load: 3500–4500 Kg
Specifications
| S.No. | Model | Load kg/pc | length L (mm) | Width b (mm) | Height H (mm) | BOLT | CC (mm) | Thru. Hole (mm) |
|---|---|---|---|---|---|---|---|---|
| 1 | DSM-250/75 | 3500 | 250 | 75 | 75 | M12x1.75 | 150 | — |
| 2 | DSM-280/50 | 4500 | 280 | 50 | 40 | M10X1.50 | 180 | 20 |

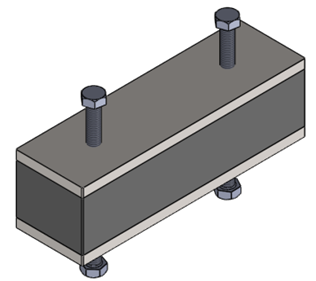

Technical Drawings
