Screw Support Mounts — Series DLK
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.
20 models
Load: 580–6000 Kg
Specifications
| Model | Load Capacity Kg/pc | Bolt Size (mm) | D (mm) | Height (H) (mm) | Adjustment Range (mm) | Possible Bolts |
|---|---|---|---|---|---|---|
| DLK1-a | 580 | M10/12/16/20 | 92 | 50 | 10 | M10/12/16/20 |
| DLK1-b | 750 | M10/12/16/20 | 92 | 50 | 10 | M10/12/16/20 |
| DLK1-c | 900 | M10/12/16/20 | 92 | 50 | 10 | M10/12/16/20 |
| DLK2-a | 1200 | M10/12/16/20/24 | 135 | 50 | 10 | M10/12/16/20/24 |
| DLK2-b | 1900 | M10/12/16/20/24 | 135 | 50 | 10 | M10/12/16/20/24 |
| DLK2-c | 2600 | M10/12/16/20/24 | 135 | 50 | 10 | M10/12/16/20/24 |
| DLK3-a | 2900 | M10/12/16/20/24 | 195 | 58 | 12 | M10/12/16/20/24 |
| DLK3-b | 3400 | M10/12/16/20/24 | 195 | 58 | 12 | M10/12/16/20/24 |
| DLK3-c | 4200 | M10/12/16/20/24 | 195 | 58 | 12 | M10/12/16/20/24 |
| DLKH2-c | 2600 | M10/12/16/20/24 | 135 | 62 | 20 | M10/12/16/20/24 |
| DLKH3-c | 4200 | M10/12/16/20/24 | 195 | 72 | 20 | M10/12/16/20/24 |
| Note : Auto Black or Zinc Coated Bolt variants are available. | — | — | — | — | — | — |
| SCREW SUPPORT MOUNTS Series DLK-4 | — | — | — | — | — | — |
| Dynemech screw support mounts series DLK-4 are suitable for heavy machine installations. they provide additional damping in shear and radial directions. | — | — | — | — | — | — |
| Model | Load Capacity Kg/pc | Possible Bolts | D (mm) | Height (H) (mm) | Adjustment Range (mm) | Possible Bolts |
| DLK4-a | 4000 | M10/12/16/20/24 | 238 | 78 | 20 | M10/12/16/20/24 |
| DLK4-b | 5000 | M10/12/16/20/24 | 238 | 78 | 20 | M10/12/16/20/24 |
| DLK4-c | 6000 | M10/12/16/20/24 | 238 | 78 | 20 | M10/12/16/20/24 |
| Note: DLK-4 Series Bolt Sizes M-10, M-12, M16, M20, M24, M30 possible on special request. | — | — | — | — | — | — |
| Note : Auto Black or Zinc Coated Bolt variants are available. | — | — | — | — | — | — |

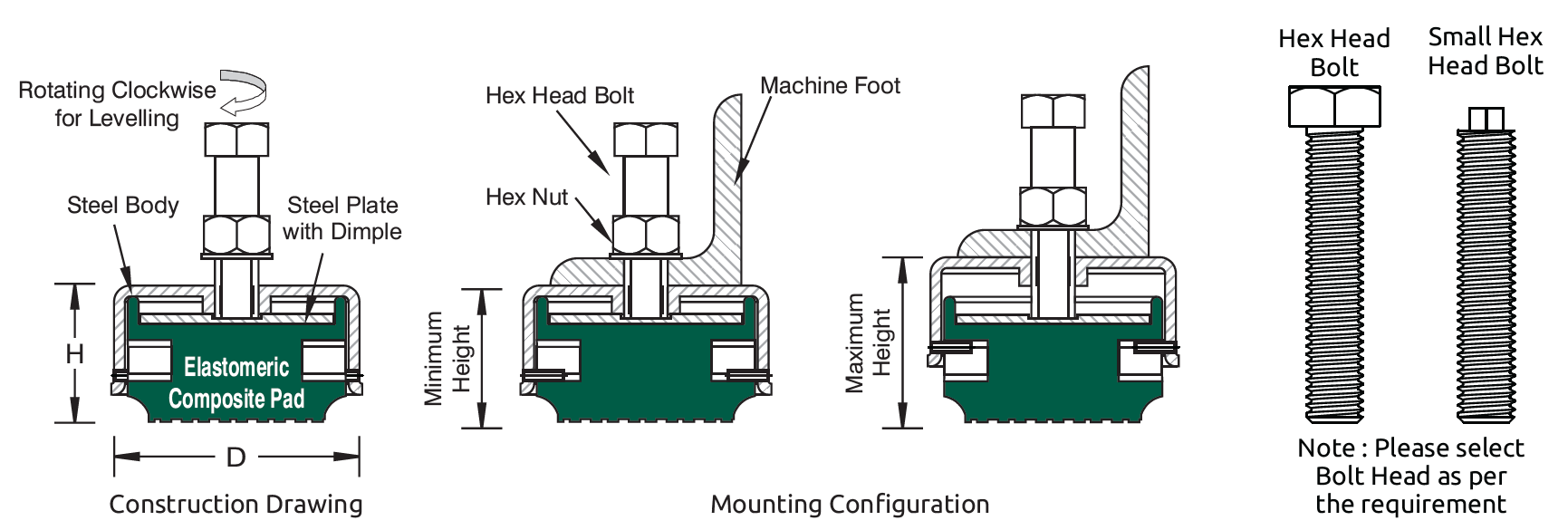

Technical Drawings
Applications
Applications
Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.
Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applicstions.
