Screw Support Mounts — Series DLK-LP
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.
11 models
Load: 580–4200 Kg
Specifications
| Model | Load Capacity Kg/pc | Bolt Size (mm) | D (mm) | Height (H) (mm) | Adjustment Range (mm) |
|---|---|---|---|---|---|
| DLK1-LP-a | 580 | M12X100 | 93 | 36 | 10 |
| DLK1-LP-b | 750 | M12X100 | 93 | 36 | 10 |
| DLK1-LP-c | 900 | M12X100 | 93 | 36 | 10 |
| DLK2-LP-a | 1200 | M16X100 | 135 | 34.5 | 10 |
| DLK2-LP-b | 1900 | M16X100 | 135 | 34.5 | 10 |
| DLK2-LP-c | 2600 | M16X100 | 135 | 34.5 | 10 |
| DLK3-LP-a | 2900 | M20X150 | 187 | 34.5 | 10 |
| DLK3-LP-b | 3400 | M20X150 | 187 | 34.5 | 10 |
| DLK3-LP-c | 4200 | M20X150 | 187 | 34.5 | 10 |
| Note : DLK-LP Series Bolt Sizes M-10, M-12, M16, M20, M24, M30 possible on special request. | — | — | — | — | — |
| Note : Black coating or Zinc coated bolts availability | — | — | — | — | — |

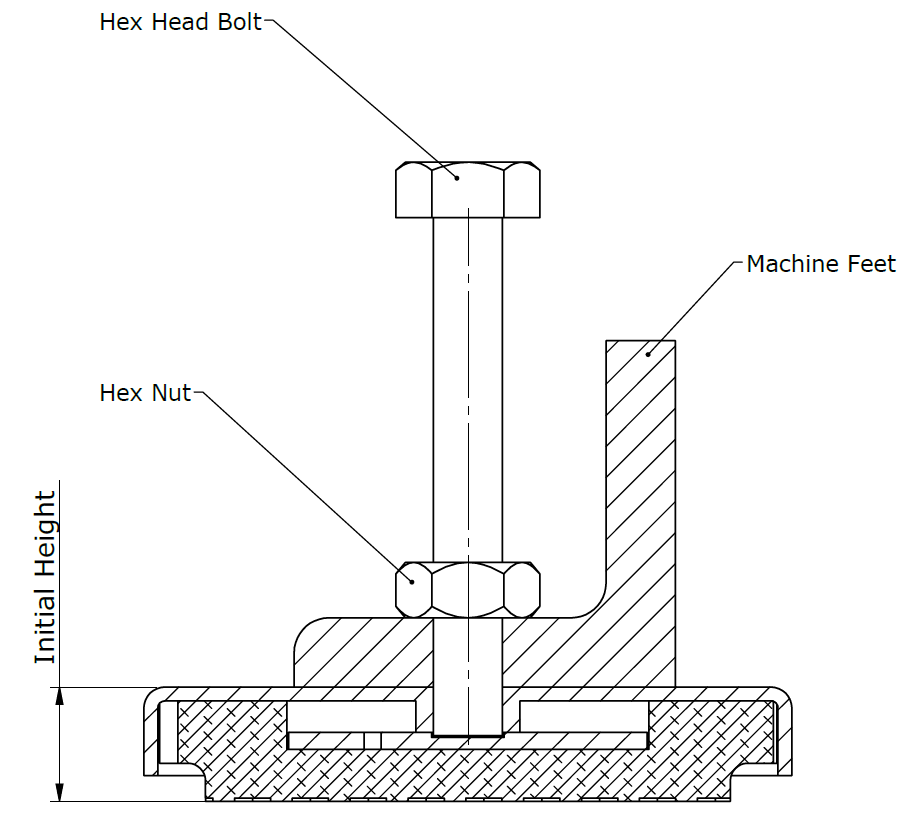

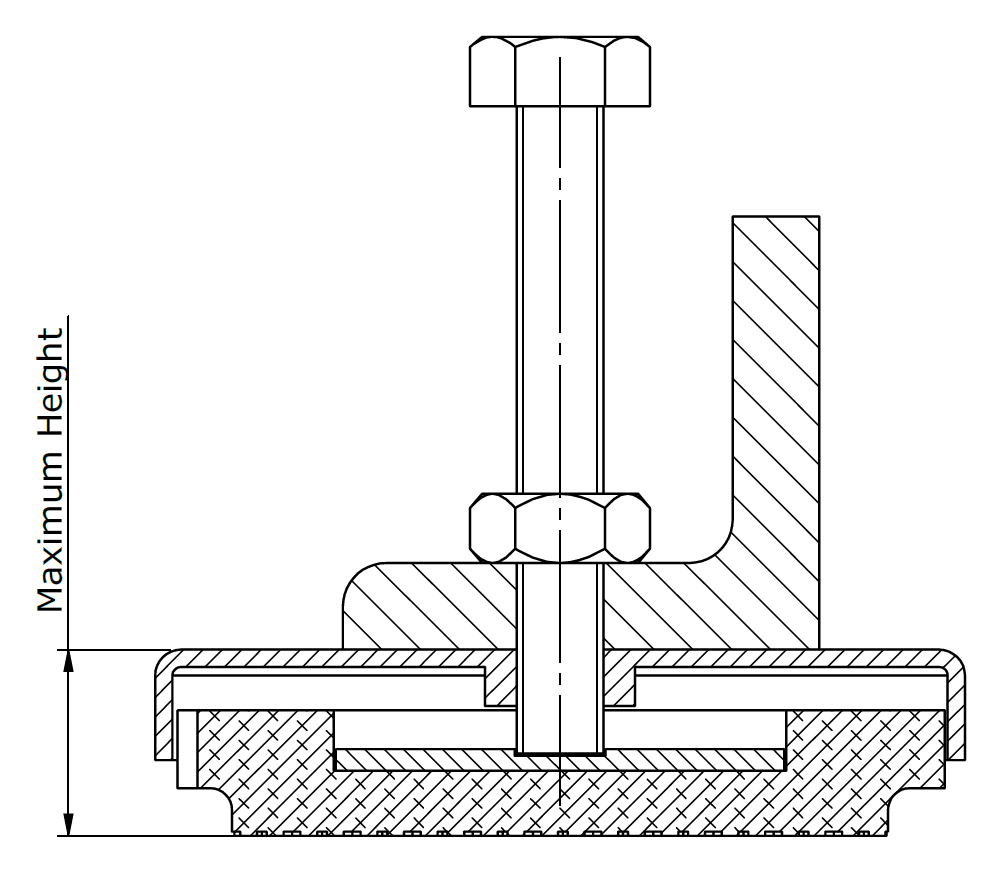

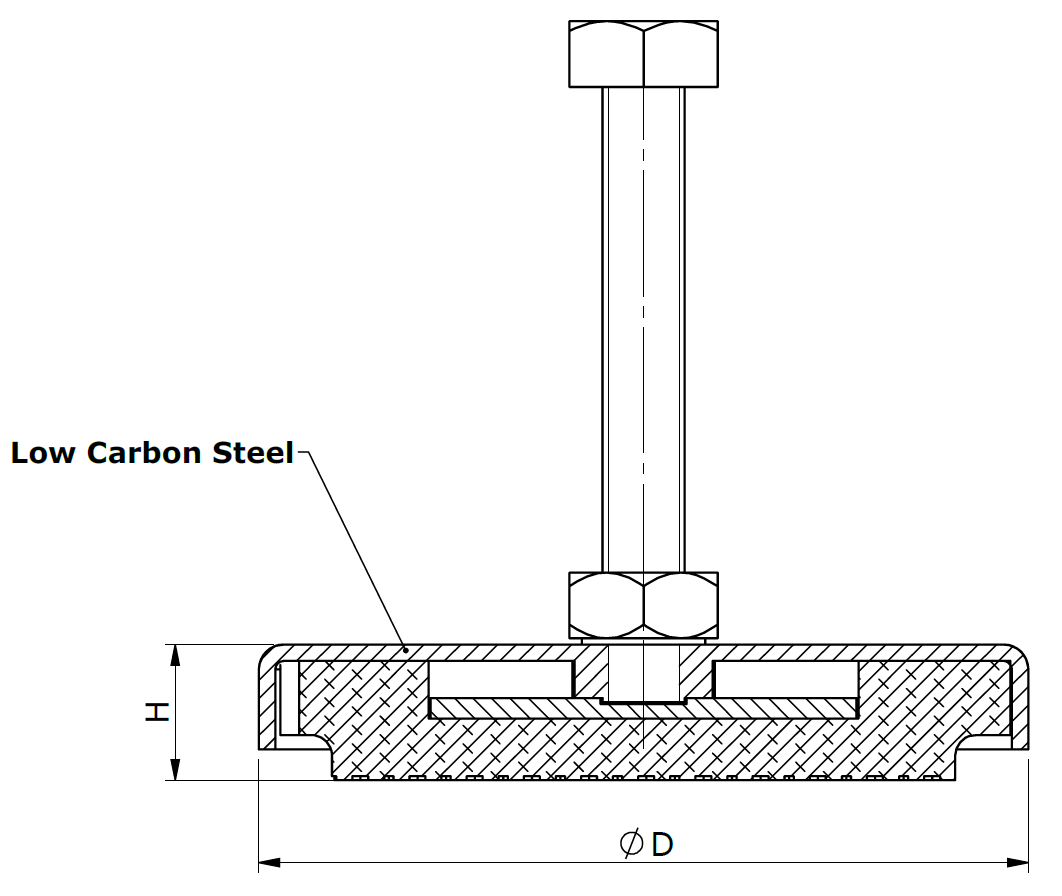

Technical Drawings
Applications
Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.
