Screw Support Mounts — Series DLM / DLMS

Name: Screw Support Mounts — Series DLM / DLMS
Brand: Dynemech Systems

Dynemech DLM/DLMS series mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. the flexible levelling screw accomodates uneven/sloped surfaces environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

63 models Load: 7–30 Kg

Specifications

Model	Load Capacity Kg/pc	Diameter (D) mm	Height (H) mm	Bolt	Coeff. of Friction against Concrete	Natural Frequency at Max. Load (Hz)
DLM1-U	18	55	21	M16X100	0.9	18
DLM2-U	18	85	28	M16X100	0.9	18
DLM3-U	18	112	28	M16X150	0.9	18
DLM4-U	18	135	30	M16X150	0.9	18
DLM5-U	18	160	30	M16X150	0.9	18
DLM6-U	18	185	34	M16X150	0.9	18
DLM7-U	18	215	35	M16X150	0.9	18
DLM8-U	18	249	44	M20X150	0.9	18
DLM9-U	18	276	43	M20X150	0.9	18
DLM1-A2	21	55	14	M16X100	0.9	21
DLM2-A2	21	85	21	M16X100	0.9	21
DLM3-A2	21	112	21	M16X150	0.9	21
DLM4-A2	21	135	23	M16X150	0.9	21
DLM5-A2	21	160	23	M16X150	0.9	21
DLM6-A2	21	185	27	M16X150	0.9	21
DLM7-A2	21	215	28	M16X150	0.9	21
DLM8-A2	21	249	37	M20X150	0.9	21
DLM9-A2	21	276	36	M20X150	0.9	21
DLM1-P2	12	55	26	M16X100	0.8	12
DLM2-P2	12	85	33	M16X100	0.8	12
DLM3-P2	12	112	33	M16X150	0.8	12
DLM4-P2	12	135	35	M16X150	0.8	12
DLM5-P2	12	160	35	M16X150	0.8	12
DLM6-P2	12	185	39	M16X150	0.8	12
DLM7-P2	12	215	40	M16X150	0.8	12
DLM8-P2	12	249	49	M20X150	0.8	12
DLM9-P2	12	276	48	M20X150	0.8	12
DLM1-S2	8	55	31	M16X100	0.8	8
DLM2-S2	8	85	38	M16X100	0.8	8
DLM3-S2	8	112	38	M16X150	0.8	8
DLM4-S2	8	135	40	M16X150	0.8	8
DLM5-S2	8	160	40	M16X150	0.8	8
DLM6-S2	8	185	44	M16X150	0.8	8
DLM7-S2	8	215	45	M16X150	0.8	8
DLM8-S2	8	249	54	M20X150	0.8	8
DLM9-S2	8	276	53	M20X150	0.8	8
DLM1-M	30	55	21	M16X100	0.7	30
DLM2-M	30	85	28	M16X100	0.7	30
DLM3-M	30	112	28	M16X150	0.7	30
DLM4-M	30	135	30	M16X150	0.7	30
DLM5-M	30	160	30	M16X150	0.7	30
DLM6-M	30	185	34	M16X150	0.7	30
DLM7-M	30	215	35	M16X150	0.7	30
DLM8-M	30	249	44	M20X150	0.7	30
DLM9-M	30	276	43	M20X150	0.7	30
DLM1-P1	7	55	21	M16X100	0.8	7
DLM2-P1	7	85	28	M16X100	0.8	7
DLM3-P1	7	112	28	M16X150	0.8	7
DLM4-P1	7	135	30	M16X150	0.8	7
DLM5-P1	7	160	30	M16X150	0.8	7
DLM6-P1	7	185	34	M16X150	0.8	7
DLM7-P1	7	215	35	M16X150	0.8	7
DLM8-P1	7	249	44	M20X150	0.8	7
DLM9-P1	7	276	43	M20X150	0.8	7
DLM1-i	7	55	31	M16X100	0.8	7
DLM2-i	7	85	38	M16X100	0.8	7
DLM3-i	7	112	38	M16X150	0.8	7
DLM4-i	7	135	40	M16X150	0.8	7
DLM5-i	7	160	40	M16X150	0.8	7
DLM6-i	7	185	44	M16X150	0.8	7
DLM7-i	7	215	45	M16X150	0.8	7
DLM8-i	7	249	54	M20X150	0.8	7
DLM9-i	7	276	53	M20X150	0.8	7

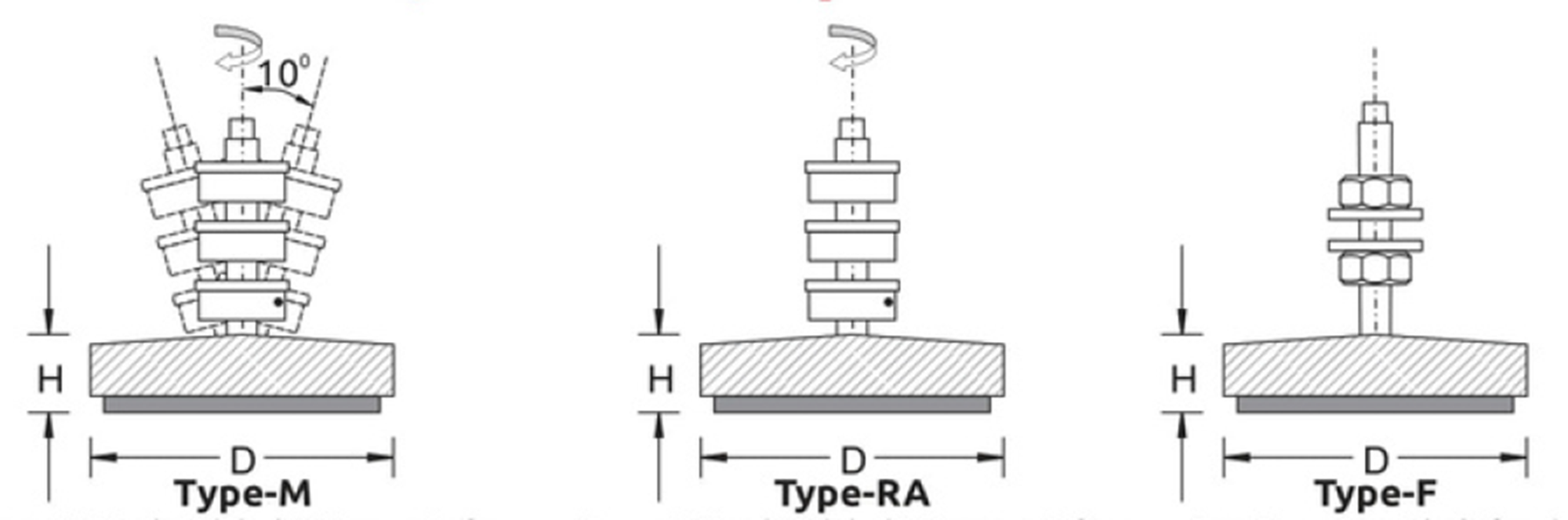

Technical Drawings

Applications

Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Very Heavy and long bed machines, long machining centres, planners etc.
