Screw Support Mounts — Series DLT
Dynemech DLT series mounts are used in the machines which must be anchored to the floor along with levelling and vibration reduction. Bolts with thru holes are provided in the machine foot, mount and anchored in the floor nut. an insulating disc is provided between the nut and the machine foot to prevent vibration from transmitting in the floor via the bolt. the dimple and the thru hole in the mount are provided as per the bolt specifications of the machine. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
45 models
Load: 8–30 Kg
Specifications
| Model | Load Capacity Kg/pc | Diameter (D) mm | Height (H) mm | Coeff. of Friction against Concrete | Natural Frequency at Max. Load (Hz) |
|---|---|---|---|---|---|
| DLT1-U | 18 | 55 | 21 | 0.9 | 18 |
| DLT2-U | 18 | 85 | 28 | 0.9 | 18 |
| DLT3-U | 18 | 112 | 28 | 0.9 | 18 |
| DLT4-U | 18 | 135 | 30 | 0.9 | 18 |
| DLT5-U | 18 | 160 | 30 | 0.9 | 18 |
| DLT6-U | 18 | 185 | 34 | 0.9 | 18 |
| DLT7-U | 18 | 215 | 35 | 0.9 | 18 |
| DLT8-U | 18 | 249 | 44 | 0.9 | 18 |
| DLT9-U | 18 | 276 | 43 | 0.9 | 18 |
| DLT1-M | 30 | 55 | 21 | 0.7 | 30 |
| DLT2-M | 30 | 85 | 28 | 0.7 | 30 |
| DLT3-M | 30 | 112 | 28 | 0.7 | 30 |
| DLT4-M | 30 | 135 | 30 | 0.7 | 30 |
| DLT5-M | 30 | 160 | 30 | 0.7 | 30 |
| DLT6-M | 30 | 185 | 34 | 0.7 | 30 |
| DLT7-M | 30 | 215 | 35 | 0.7 | 30 |
| DLT8-M | 30 | 249 | 44 | 0.7 | 30 |
| DLT9-M | 30 | 276 | 43 | 0.7 | 30 |
| DLT1-P2 | 12 | 55 | 26 | 0.8 | 12 |
| DLT2-P2 | 12 | 85 | 33 | 0.8 | 12 |
| DLT3-P2 | 12 | 112 | 33 | 0.8 | 12 |
| DLT4-P2 | 12 | 135 | 35 | 0.8 | 12 |
| DLT5-P2 | 12 | 160 | 35 | 0.8 | 12 |
| DLT6-P2 | 12 | 185 | 39 | 0.8 | 12 |
| DLT7-P2 | 12 | 215 | 40 | 0.8 | 12 |
| DLT8-P2 | 12 | 249 | 49 | 0.8 | 12 |
| DLT9-P2 | 12 | 276 | 48 | 0.8 | 12 |
| DLT1-S2 | 8 | 55 | 31 | 0.8 | 8 |
| DLT2-S2 | 8 | 85 | 38 | 0.8 | 8 |
| DLT3-S2 | 8 | 112 | 38 | 0.8 | 8 |
| DLT4-S2 | 8 | 135 | 40 | 0.8 | 8 |
| DLT5-S2 | 8 | 160 | 40 | 0.8 | 8 |
| DLT6-S2 | 8 | 185 | 44 | 0.8 | 8 |
| DLT7-S2 | 8 | 215 | 45 | 0.8 | 8 |
| DLT8-S2 | 8 | 249 | 54 | 0.8 | 8 |
| DLT9-S2 | 8 | 276 | 53 | 0.8 | 8 |
| DLT1-S1 | 15 | 55 | 26 | 0.8 | 15 |
| DLT2-S1 | 15 | 85 | 33 | 0.8 | 15 |
| DLT3-S1 | 15 | 112 | 33 | 0.8 | 15 |
| DLT4-S1 | 15 | 135 | 35 | 0.8 | 15 |
| DLT5-S1 | 15 | 160 | 35 | 0.8 | 15 |
| DLT6-S1 | 15 | 185 | 39 | 0.8 | 15 |
| DLT7-S1 | 15 | 215 | 40 | 0.8 | 15 |
| DLT8-S1 | 15 | 249 | 49 | 0.8 | 15 |
| DLT9-S1 | 15 | 276 | 48 | 0.8 | 15 |

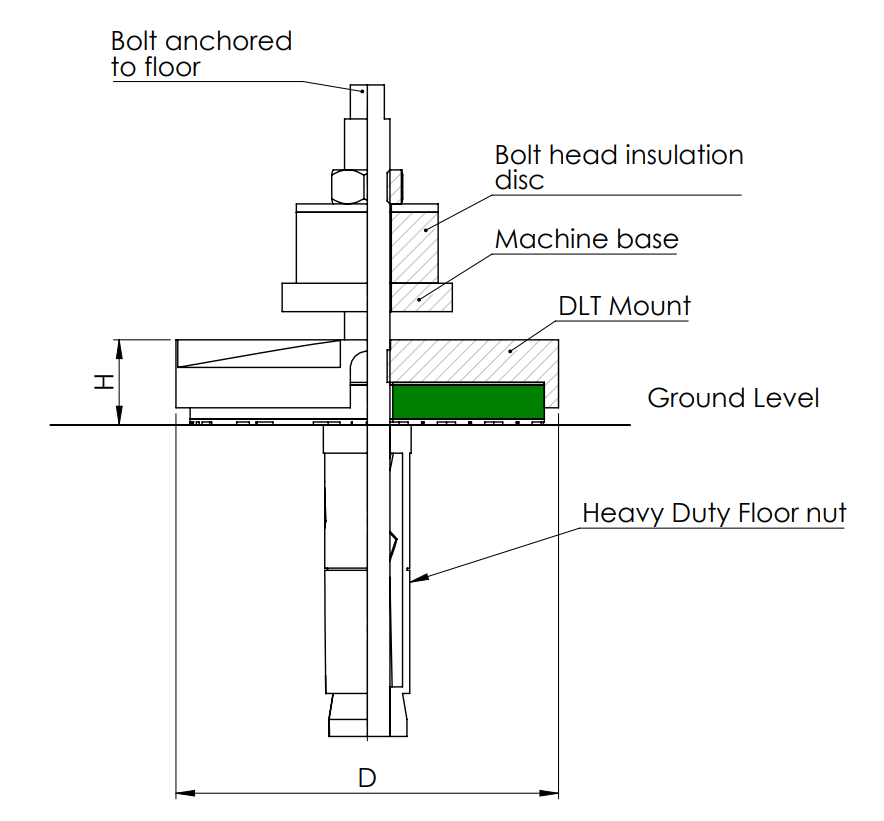

Technical Drawings
Applications
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
