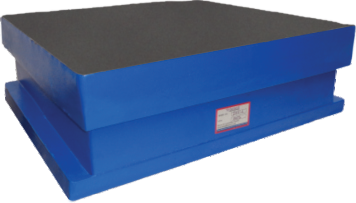

Shock Mounts — Series DXO
Dynemech DXO mounts are suitable for very heavy presses. These mounts are also customized to cover the complete base area of the machine. These mounts provides high shock isolation.
3 models
Load: 7–7 Kg
Specifications
| S. NO. | MODEL | Length L (mm) | Width B (mm) | Height H (mm) | Max. Load Capacity (Kg/pc) | Natural Frequency at Max. Load (Hz) |
|---|---|---|---|---|---|---|
| 1 | DXO-1 | 550 | 550 | 190 | 7 | 7 |
| 2 | DXO-2 | 800 | 550 | 190 | 7 | 7 |
| 3 | DXO-3 | 1100 | 550 | 190 | 7 | 7 |
Technical Drawings
