Shock Mounts — Series DXO-SP1
DXO-Sp1 series is designed for Very heavy machines which produce high shocks and are top heavy or have high rapid movements. These mounts provides stability to forging presses which have a very small area and are heavier on the top half. The base is equipped with multi layers of DHS1 insulation plates and the strong side support avoids lateral movement of the machine. Similarly for VMC machines these mounts provides high efficiency along with preventing machine shaking during high rapid.
4 models
Load: 7000–21000 Kg
Specifications
| S. NO. | MODEL | Load Capacity (Kg) | L (mm) | W (mm) | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | Natural Frequency (Hz) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DXO1-SP1 | 7000 | 650 | 350 | 250 | 200 | 450 | 176 | 185 | 7 |
| 2 | DXO2-SP1 | 10000 | 700 | 400 | 300 | 250 | 350 | 226 | 185 | 7 |
| 3 | DXO3-SP1 | 15000 | 750 | 450 | 350 | 300 | 400 | 276 | 185 | 7 |
| 4 | DXO4-SP1 | 21000 | 800 | 500 | 400 | 350 | 450 | 326 | 185 | 7 |

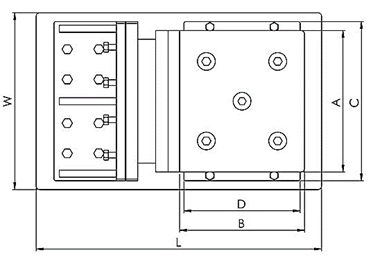

Technical Drawings
