Stud Mounts — Series DSB / Du-3L
24 models
Load: 25–750 Kg

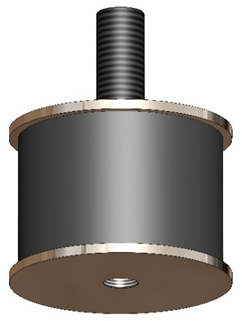

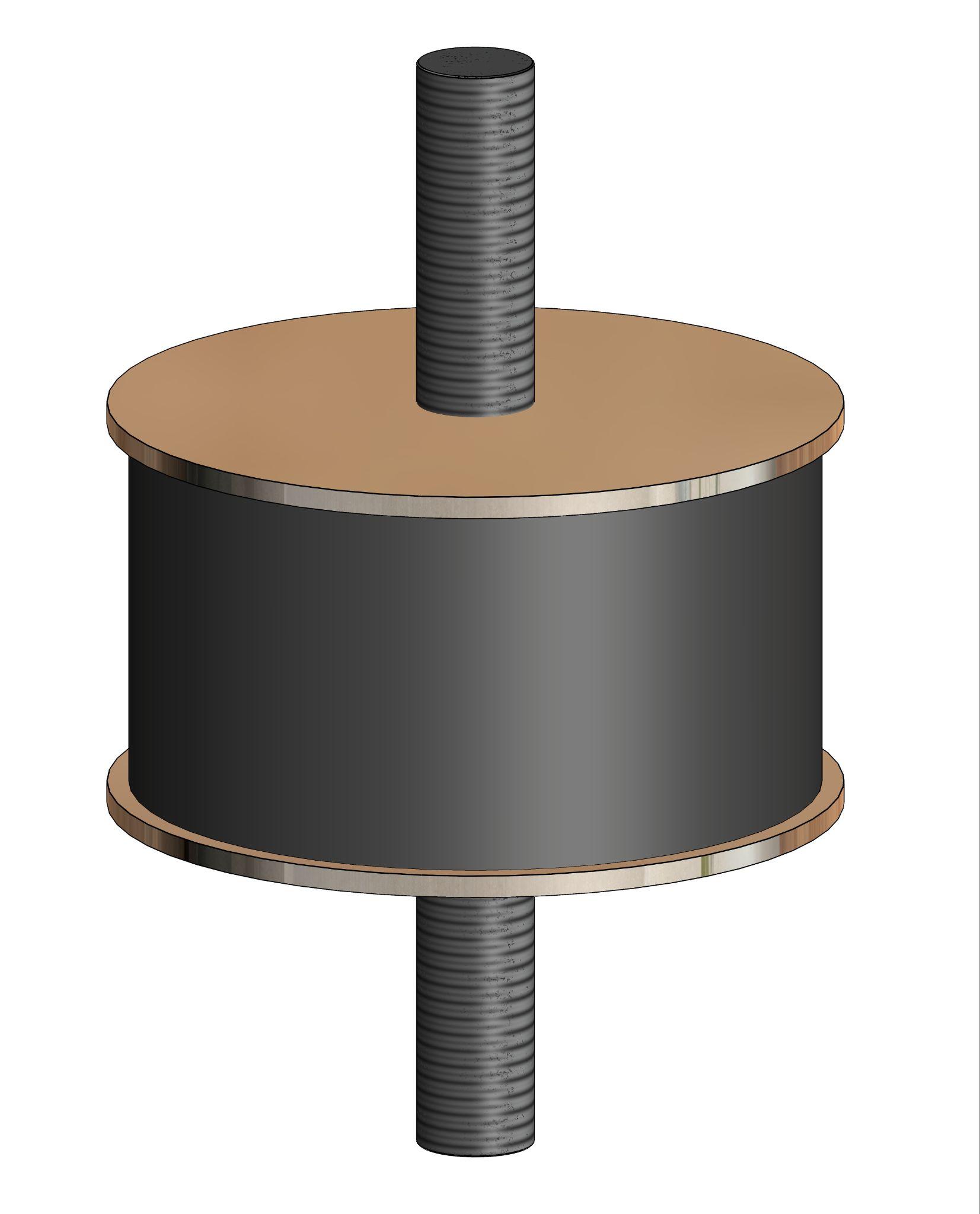

Specifications
| Model | D (mm) | H (mm) | G (mm) | L (mm) | Load Kgs. | Natural Frequency (Hz) |
|---|---|---|---|---|---|---|
| DS a 75-57 | 75 | 57 | M12 | 43.25 | 130 | 7 |
| DS b 75-57 | 75 | 57 | M12 | 43.25 | 275 | 7 |
| DS c 75-57 | 75 | 57 | M12 | 43.25 | 400 | 7 |
| DS a 100.5-56.5 | 100.5 | 56.5 | M16 | 48 | 250 | 7 |
| DS b 100.5-56.5 | 100.5 | 56.5 | M16 | 48 | 500 | 7 |
| DS c 100.5-56.5 | 100.5 | 56.5 | M16 | 48 | 750 | 7 |
| Note:- The stud mount Height will be reduced as per the customer requirement. | — | — | — | — | — | — |
| SANDWICH MOUNTS Series Du-3L | — | — | — | — | — | — |

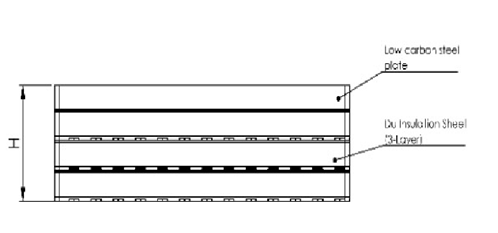

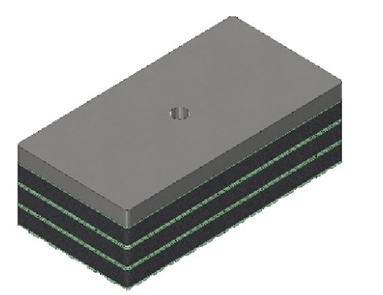

| The sandwich mounts comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. These mounts have large supporting surface area and are slim. These mounts can also be stacked tom achieve lower natural frequencies. | — | — | — | — | — | — |
| S. No. | Model | Max Load Capacity Kg/pc | L (mm) | W (mm) | H (mm) | Bolt (G) |
| 1 | Du-3L-MS | 1580 | 185 | 95 | 57 | M14 |
| RUBBER BUFFERS/RUBBER SPRINGS | — | — | — | — | — | — |

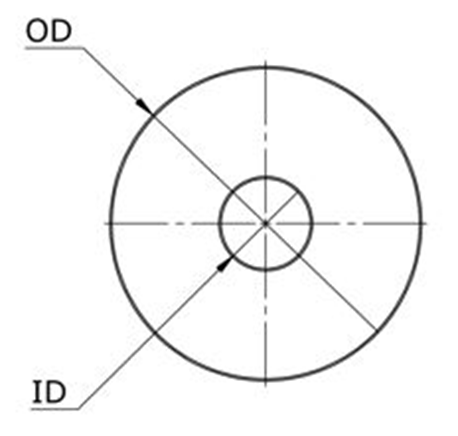

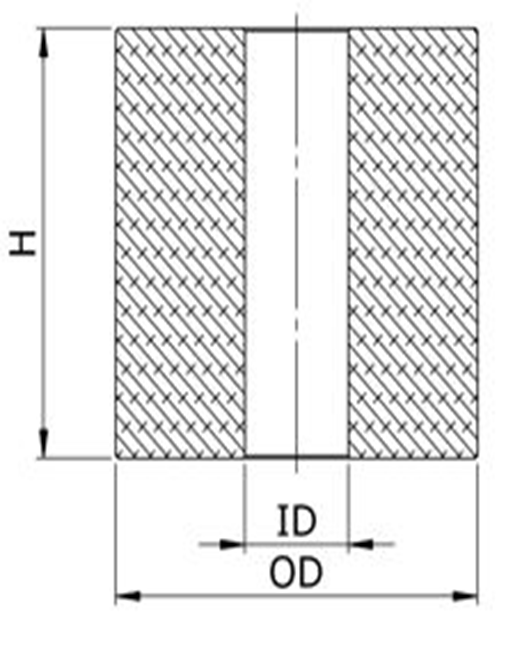

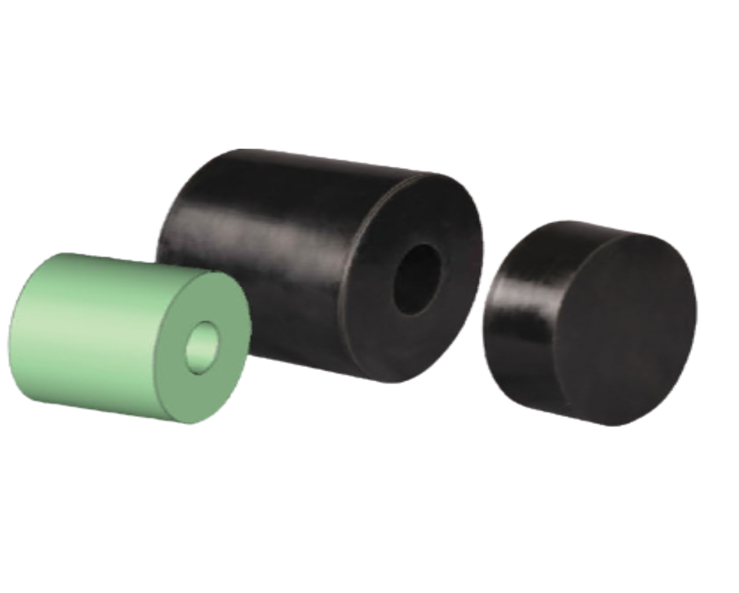

| Dynemech Rubber Bushes are available in various standard and customized sizes. They are made from different types of rubber material and fabric reinforcements based in the application requirements. | — | — | — | — | — | — |
| S. NO. | MODEL | LOAD CAPACITY (Kg) | OUTER DIA. OD (mm) | INNER DIA. ID (mm) | HEIGHT H (mm) | SHORE A HARDNESS |
| 1 | RB 100-125 | 750 | 100 | — | 125 | 70-75 |
| 2 | RB 165-60 | 1400 | 165 | 100 | 60 | 80-85 |
| 3 | DLKI5-175 | 9000 | 200 | 68 | 175 | 80-85 |
| 4 | DLKI4 | 6000 | 220 | 50 | 100 | 70-75 |
| 5 | NEOPRENE SPRING 82-105 | 500 | 82 | 51 | 105 | 70-75 |
| 6 | DSc 60-50 T-13.5 | 200 | 60 | 13.5 | 50 | 80-85 |
| 7 | INSULATION DISC M16 | 95 | 40 | 17 | 25 | 70-75 |
| 8 | INSULATION DISC M20 | 160 | 52 | 21 | 25 | 70-75 |
| 9 | INSULATION DISC M30 | 400 | 75 | 31 | 25 | 70-75 |
| *customized sizes and material specifications can be possible as per customer's requirement | — | — | — | — | — | — |
