Wedge Mounts — Series DB

Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator. Applications: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

33 models Load: 500–26000 Kg
Series DB — product image
Series DB — image 2
Series DB — image 3
Series DB — image 4
Series DB — image 5

Specifications

Model Load Kg/pc Length (L) mm Width (B) mm Height (H) at mean position (mm) d (mm) e (mm) Bolt size (mm) Adjustment range (mm)
DB0-u 900 100 100 53 42 23 M12 6
DB1-u 1100 115 115 59 50 24 M16 8
DB2-u 1800 150 150 65 60 23 M18 10
DB3-u 3200 200 200 65 75 27 M20 12
DB4-u 4000 200 250 85 95 27 M20 18
DB5-u 6400 250 320 90 125 55 M24 18
DB6-u 9600 300 400 90 148 50 M24 20
DB7-u 16000 400 500 95 200 70 M24 20
DB0-i 1400 100 100 63 42 23 M12 6
DB1-i 1800 115 115 69 50 24 M16 8
DB2-i 2900 150 150 75 60 23 M18 10
DB3-i 5200 200 200 75 75 27 M20 12
DB4-i 6500 200 250 95 95 27 M20 18
DB5-i 10000 250 320 100 125 55 M24 18
DB6-i 15000 300 400 100 148 50 M24 20
DB7-i 26000 400 500 105 200 70 M24 20
DB0-s2 800 100 100 63 42 23 M12 6
DB1-s2 950 115 115 69 50 24 M16 8
DB2-s2 1600 150 150 75 60 23 M18 10
DB3-s2 2800 200 200 75 75 27 M20 12
DB4-s2 3500 200 250 95 95 27 M20 18
DB5-s2 5500 250 320 100 125 55 M24 18
DB6-s2 8500 300 400 100 148 50 M24 20
DB7-s2 14000 400 500 105 200 70 M24 20
DB0-s1 500 100 100 58 42 23 M12 6
DB1-s1 600 115 115 64 50 24 M16 8
DB2-s1 1000 150 150 70 60 23 M18 10
DB3-s1 1800 200 200 70 75 27 M20 12
DB4-s1 2200 200 250 90 95 27 M20 18
DB5-s1 3500 250 320 95 125 55 M24 18
DB6-s1 5200 300 400 95 148 50 M24 20
DB7-s1 9500 400 500 100 200 70 M24 20
Wedge Mounts Series DBP — Wedge Mounts Series DBPH — Series DBHOP-150 — Wedge Mounts Series DBPO — —

Technical Drawings

Series DB — technical drawing 1

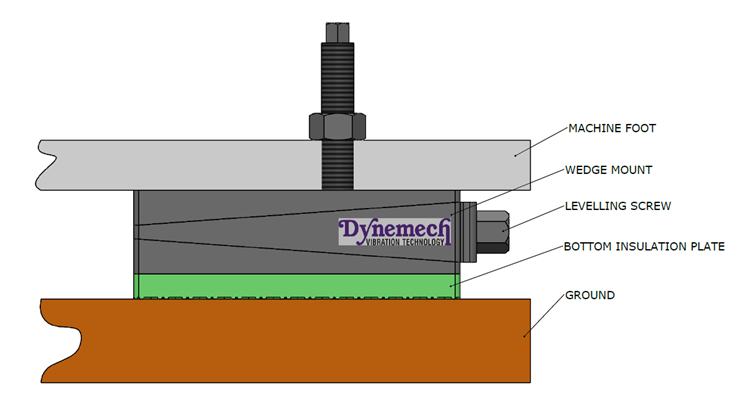

Series DB — technical drawing 2
Series DB — technical drawing 3

Applications

Applications: Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Applications: Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Wedge Mounts Series DBSP
Applications: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
