Wedge Mounts — Series DBH
Dynemech's Series DBH mounts are sturdy in construction, Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
12 models
Load: 2250–14000 Kg
Specifications
| Model | Load Kg/pc | Length (L) mm | Width (B) mm | Height (H) at mean position (mm) | d (mm) | e (mm) | Bolt Size (mm) | Adjustment range (mm) |
|---|---|---|---|---|---|---|---|---|
| DBH1-u | 2250 | 200 | 125 | 88 | 75 | 25 | M20 | 16 |
| DBH2-u | 2700 | 200 | 150 | 120 | 75 | 25 | M20 | 20 |
| DBH3-u | 4200 | 280 | 170 | 150 | 145 | 30 | M20 | 25 |
| DBH1-m | 2500 | 200 | 125 | 88 | 75 | 25 | M20 | 16 |
| DBH2-m | 3000 | 200 | 150 | 120 | 75 | 25 | M20 | 20 |
| DBH3-m | 4600 | 280 | 170 | 150 | 145 | 30 | M20 | 25 |
| DBH1-i | 3500 | 200 | 125 | 98 | 75 | 25 | M20 | 16 |
| DBH2-i | 4200 | 200 | 150 | 130 | 75 | 25 | M20 | 20 |
| DBH3-i | 6400 | 280 | 170 | 160 | 145 | 30 | M20 | 25 |
| DBH1-h | 7500 | 200 | 125 | 88 | 75 | 25 | M20 | 16 |
| DBH2-h | 9000 | 200 | 150 | 120 | 75 | 25 | M20 | 20 |
| DBH3-h | 14000 | 280 | 170 | 150 | 145 | 30 | M20 | 25 |

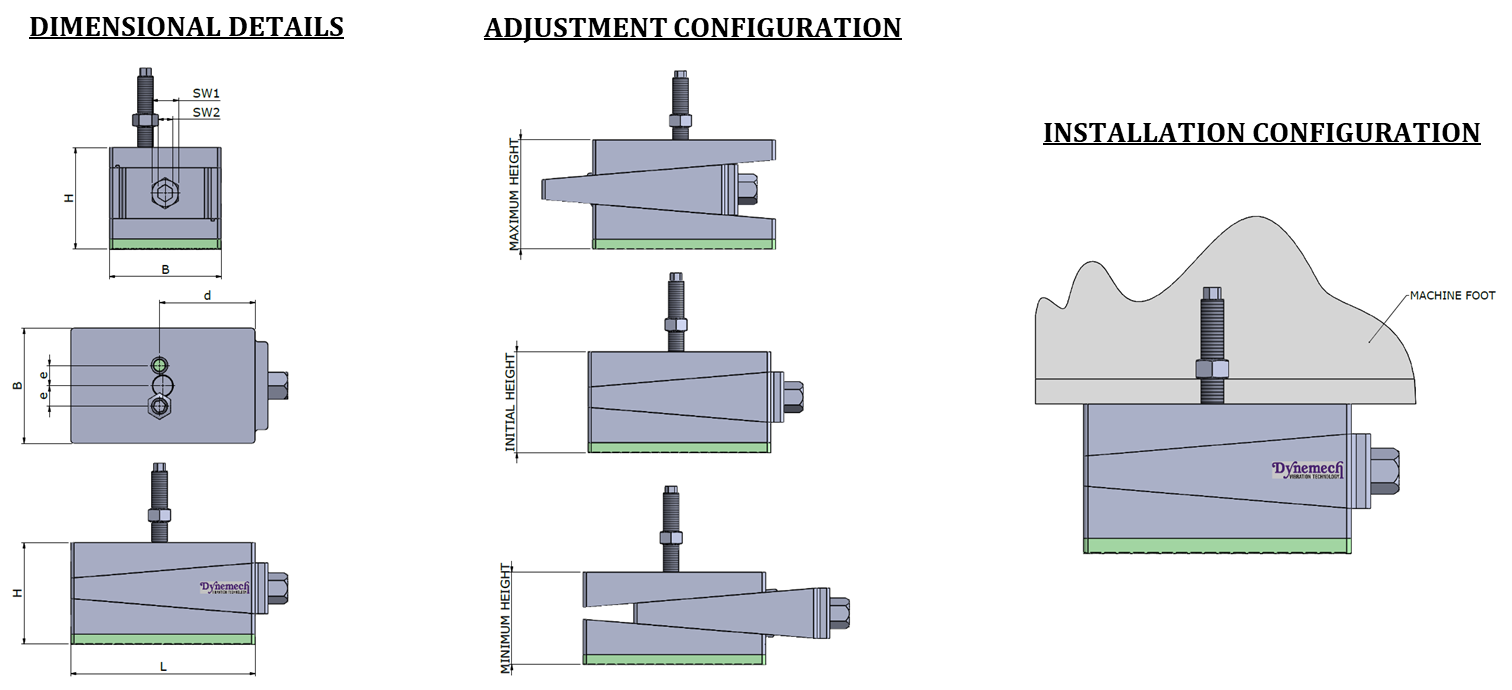

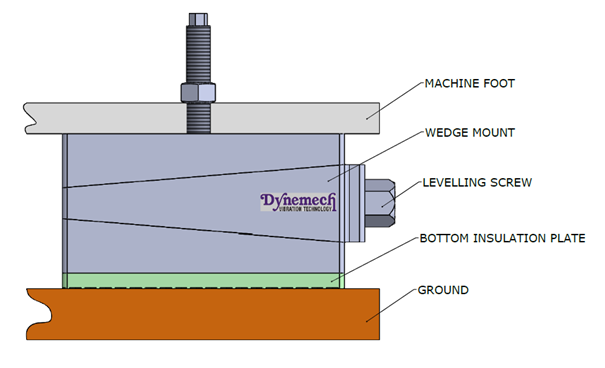

Technical Drawings
Applications
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Power Presses, Stamping Machines, Shearing Machines, Punching Machine For Machines with high vertical impact.
Forging Hammers, Heavy Gen sets, Heavy Industrial machine, Test Rigs, Heavy presses etc.
