Wedge Mounts — Series DF
Dynemech Wedge mounts, Series DF are designed for industrial machine tools that require precision levelling assembled with respective Dynemech Insulation Plates. Top anti skid plate Da2 & bottom insulation plate Du.
33 models
Load: 180–26000 Kg
Specifications
| Model | Load Kg/pc | Length (L) mm | Width (B) mm | Height (H) at mean position (mm) | Adjustment range (mm) |
|---|---|---|---|---|---|
| DF1-u | 400 | 105 | 55 | 60 | 8 |
| DF2-u | 900 | 150 | 75 | 63 | 10 |
| DF3-u | 1500 | 200 | 100 | 70 | 10 |
| DF4-u | 3200 | 200 | 200 | 73 | 12 |
| DF5-u | 4000 | 200 | 250 | 93 | 18 |
| DF6-u | 6400 | 250 | 320 | 98 | 18 |
| DF7-u | 9600 | 300 | 400 | 98 | 20 |
| DF8-u | 16000 | 400 | 500 | 103 | 20 |
| DF1-m | 500 | 105 | 55 | 54 | 8 |
| DF2-m | 1200 | 150 | 75 | 57 | 10 |
| DF3-m | 2000 | 200 | 100 | 64 | 10 |
| DF4-m | 4000 | 200 | 200 | 67 | 12 |
| DF5-m | 5000 | 200 | 250 | 87 | 18 |
| DF6-m | 8000 | 250 | 320 | 92 | 18 |
| DF7-m | 12000 | 300 | 400 | 92 | 20 |
| DF8-m | 20000 | 400 | 500 | 97 | 20 |
| DF1-i | 600 | 105 | 55 | 70 | 8 |
| DF2-i | 1500 | 150 | 75 | 73 | 10 |
| DF3-i | 2500 | 200 | 100 | 80 | 10 |
| DF4-i | 5200 | 200 | 200 | 83 | 12 |
| DF5-i | 6500 | 200 | 250 | 103 | 18 |
| DF6-i | 10000 | 250 | 320 | 108 | 18 |
| DF7-i | 15000 | 300 | 400 | 108 | 20 |
| DF8-i | 26000 | 400 | 500 | 113 | 20 |
| DF1-p2 | 180 | 105 | 55 | 59 | 8 |
| DF2-p2 | 400 | 150 | 75 | 62 | 10 |
| DF3-p2 | 725 | 200 | 100 | 69 | 10 |
| DF4-p2 | 1450 | 200 | 200 | 72 | 12 |
| DF5-p2 | 1800 | 200 | 250 | 92 | 18 |
| DF6-p2 | 2900 | 250 | 320 | 97 | 18 |
| DF7-p2 | 4400 | 300 | 400 | 97 | 20 |
| DF8-p2 | 7500 | 400 | 500 | 102 | 20 |
| Series DFP Dynemech Wedge Mounts, Series DFP have a height of 100/150 mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DF. | — | — | Wedge Mounts , Series DFPH DFPHs are sturdy in construction, with a height of 150mm to meet TPM guidelines & installing very heavy or long bedded machines at a height. | — | — |

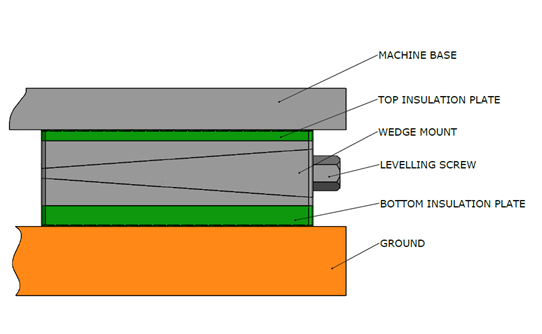

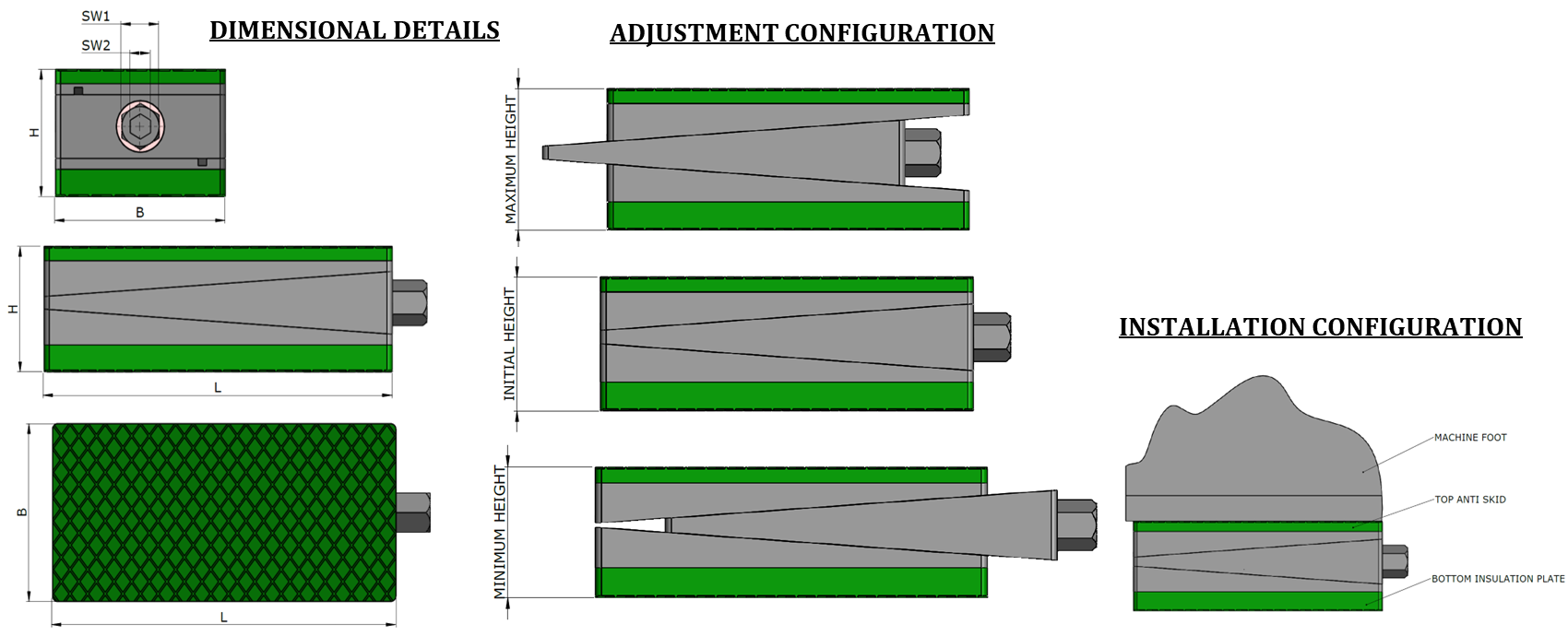

Technical Drawings
Applications
Top anti skid plate Da1 & bottom insulation plate Dp2.
Wedge Mounts , Series DFSP
Spherical Positioners on free standing Wedge Series DF, transmit the load of the machine to the ground despite angle difference between machine base & foundation.
Applications: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Applications : Measuring & Testing Machines, Surface
Plates, Hardness Testers, Microscopes,
EDM Machines, Profile Projectors etc.
Applications: Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines,
Drilling Machines, Turning Centres, Transfer Lines etc.
Top anti skid plate Da2 & bottom insulation plate Di.
Applications: Power Presses, Stamping Machines,
Shearing Machines, Punching Machines.
For machines with high vertical impact.
Top anti skid plate Da1 & bottom insulation plate Dm.
Top anti skid plate Da2 & bottom insulation plate Du.
