Wedge Mounts — Series DFH
Dynemech's Series DFH mounts are sturdy in construction and installed as free standing. They are designed by very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines,Shaper, Printing and Textile Machines etc.
12 models
Load: 2250–14000 Kg
Specifications
| Model | Load Kg/pc | Length (L) mm | Width (B) mm | Height (H) at mean position (mm) | Adjustment range (mm) |
|---|---|---|---|---|---|
| DFH1-u | 2250 | 200 | 125 | 96 | 16 |
| DFH2-u | 2700 | 200 | 150 | 128 | 20 |
| DFH3-u | 4284 | 280 | 170 | 158 | 25 |
| DFH1-m | 2500 | 200 | 125 | 90 | 16 |
| DFH2-m | 3000 | 200 | 150 | 122 | 20 |
| DFH3-m | 4760 | 280 | 170 | 152 | 25 |
| DFH1-i | 3500 | 200 | 125 | 106 | 16 |
| DFH2-i | 4200 | 200 | 150 | 138 | 20 |
| DFH3-i | 6664 | 280 | 170 | 168 | 25 |
| DFH1-h | 7500 | 200 | 125 | 90 | 16 |
| DFH2-h | 9000 | 200 | 150 | 122 | 20 |
| DFH3-h | 14000 | 280 | 170 | 152 | 25 |

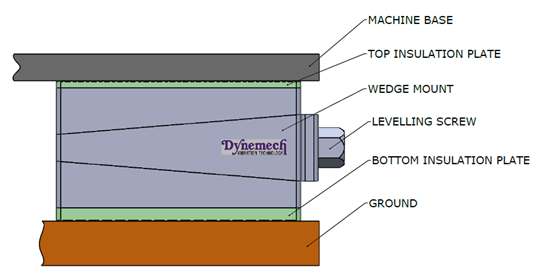

Technical Drawings
Applications
Forging Hammers, Heavy Gen sets, Heavy Industrial
machine, Test Rigs, Heavy presses etc.
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines,Shaper, Printing and Textile Machines etc.
Power Presses, Stamping Machines, Shearing Machines, Punching Machines.
Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines, Drilling Machines, Turning Centres, Transfer Lines etc.
