Wedge Mounts — Series DT

Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator. Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

26 models Load: 800–26000 Kg
Series DT — product image
Series DT — image 2

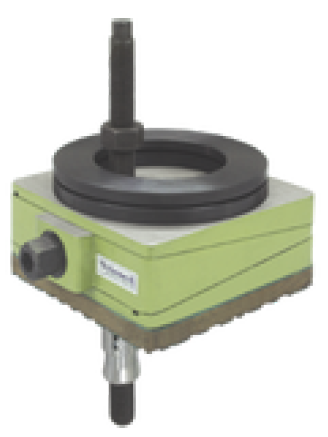

Series DT — image 3
Series DT — image 4

Specifications

Model Load Kg/pc Length (L) mm Width (B) mm Height (H) at mean position (mm) d (mm) e (mm) bore* Ø (mm) Adjustment range (mm)
DT0-m 1000 100 100 53 42 23 18 6
DT1-m 1400 115 115 59 50 24 22 8
DT2-m 2200 150 150 65 60 23 22 10
DT3-m 4000 200 200 65 75 27 28 12
DT4-m 5000 200 250 85 95 27 28 18
DT5-m 8000 250 320 90 125 55 28 18
DT6-m 12000 300 400 90 148 50 30 20
DT7-m 20000 400 500 95 200 70 32 20
DT0-i 1400 100 100 63 42 23 18 6
DT1-i 1800 115 115 69 50 24 22 8
DT2-i 2900 150 150 75 60 23 22 10
DT3-i 5200 200 200 75 75 27 28 12
DT4-i 6500 200 250 95 95 27 28 18
DT5-i 10000 250 320 100 125 55 28 18
DT6-i 15000 300 400 100 148 50 30 20
DT7-i 26000 400 500 105 200 70 32 20
DT0-s2 800 100 100 63 42 23 18 6
DT1-s2 950 115 115 69 50 24 22 8
DT2-s2 1600 150 150 75 60 23 22 10
DT3-s2 2800 200 200 75 75 27 28 12
DT4-s2 3500 200 250 95 95 27 28 18
DT5-s2 5500 250 320 100 125 55 28 18
DT6-s2 8500 300 400 100 148 50 30 20
DT7-s2 14000 400 500 105 200 70 32 20
*bolt is optional in DT series Wedge Mounts. — — — — — — — —
Wedge Mounts Series DTP — Wedge Mounts Series DTPH — Wedge Mounts Series DTHO — Wedge Mounts Series DTPO — Wedge Mounts Series DTSP

Technical Drawings

Series DT — technical drawing 1

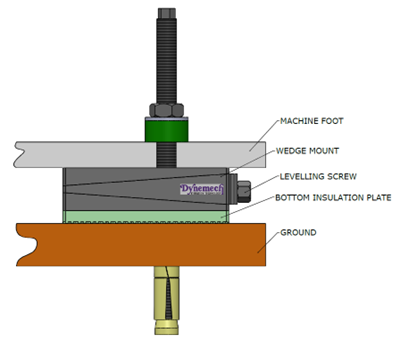

Series DT — technical drawing 2
Series DT — technical drawing 3
Series DT — technical drawing 4

Applications

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
