WEDGE MOUNTS, Series DTO (Centred Hole-Bolt Through) Dynemech Wedge Mount, Series DTO is designed for machine which are top heavy or have eccentric motion or machines which must be anchored to the ground. Boring machine, drilling and milling machines, machining centres, special purpose machines, long lathes, long planers, power presses etc.
14 models
Load: 950–16000 Kg
Specifications
| Model | Load Kg/pc | Length (L) mm | Width (B) mm | Height (H) at mean position (mm) | Bore Ø (mm) | Adjustment range (mm) |
|---|---|---|---|---|---|---|
| DTO1-u | 1100 | 115 | 115 | 59 | 26 | 8 |
| DTO2-u | 1800 | 150 | 150 | 65 | 26 | 10 |
| DTO3-u | 3200 | 200 | 200 | 65 | 32 | 12 |
| DTO4-u | 4000 | 200 | 250 | 85 | 32 | 18 |
| DTO5-u | 6400 | 250 | 320 | 90 | 42 | 18 |
| DTO6-u | 9600 | 300 | 400 | 90 | 42 | 20 |
| DTO7-u | 16000 | 400 | 500 | 95 | 42 | 20 |
| DTO1-s2 | 950 | 115 | 115 | 69 | 26 | 8 |
| DTO2-s2 | 1600 | 150 | 150 | 75 | 26 | 10 |
| DTO3-s2 | 2800 | 200 | 200 | 75 | 32 | 12 |
| DTO4-s2 | 3500 | 200 | 250 | 95 | 32 | 18 |
| DTO5-s2 | 5500 | 250 | 320 | 100 | 42 | 18 |
| DTO6-s2 | 8500 | 300 | 400 | 100 | 42 | 20 |
| DTO7-s2 | 14000 | 400 | 500 | 105 | 42 | 20 |

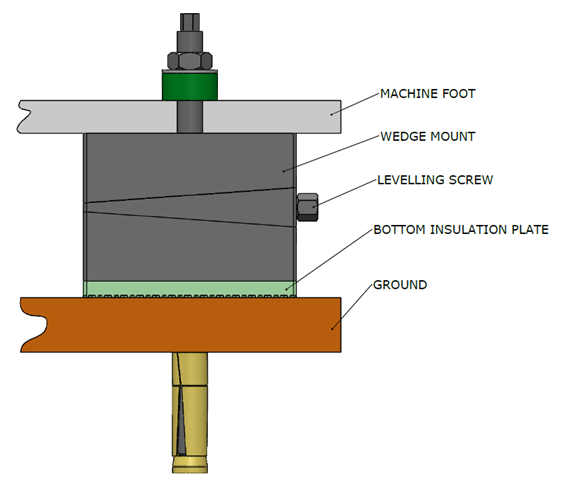

Technical Drawings
Applications
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shapper, Printing and Textile Machines etc.
Power Presses, Stamping Machines, Punching for Machines with high vertical impact.
