Anti-Vibration Tables
45 product variants across 5 series
DIT-E / DIT-AM Tables
SHOCK RESISTANT/ANTI-VIBRATION TABLE WITH ELASTOMERIC ISOLATION Series DIT-E Dynemech Anti Vibration Tables - Series DIT-E are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise measuring accuracies. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets. Five layers of DP exhibits a natural frequency of 7-8 Hz. which damps most of the incoming frequencies above 20 Hz. APPLICATIONS : The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like: Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations.

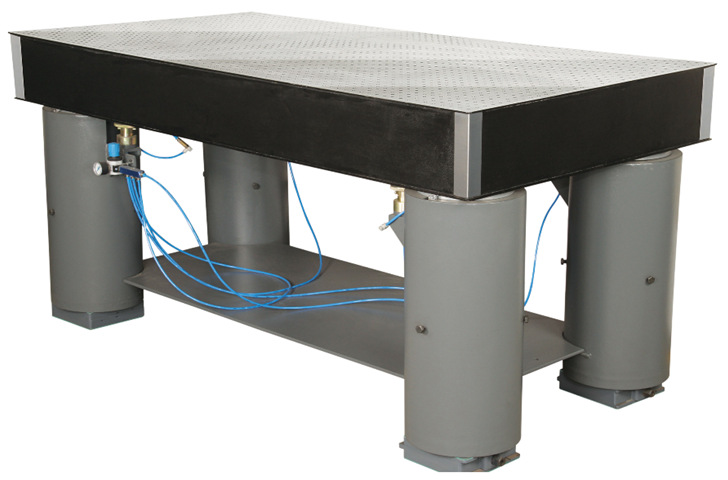

DIT AM-HC / DIT-AHL Tables
Anti-vibration Table with Honeycomb Tabletop and Auto Levelling Pneumatic Vibration Mounts Series DIT AM-HC

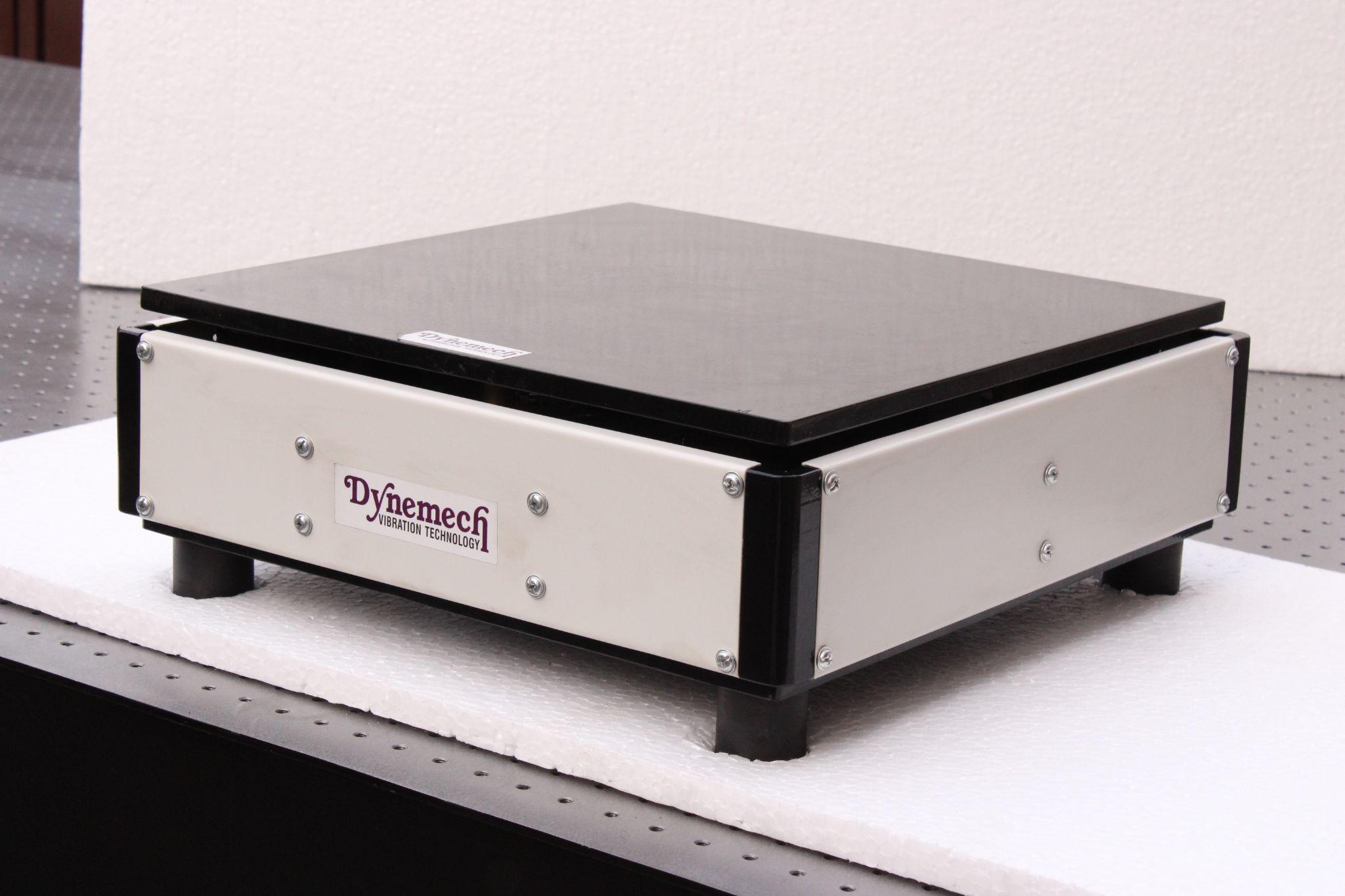

VIP-E / VIP-AM Platforms
Dynemech Anti Vibration Platform , are ideal for precision lab balances / microscopes/testing & measuring or scientific instruments and other vibration sensitive equipment like probes etc. They are suitable for equipment in Testing / Quality/Medical & Biological Laboratories co-located nearby industrial units/commercial units having high degree of vibration transmission due to vehicular traffic, HVAC installations and other vibration creating equipment. Audio centres and Research laboratories may find use of Dynemech Vibration Isolation Platforms for the vibration sensitive equipments. Dynemech Anti Vibration Platform VIP-E The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets where in vibration transmission by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets. Five layers of DP exhibits a natural frequency of 7-8 Hz. which damps most of the incoming frequencies above 15 Hz.

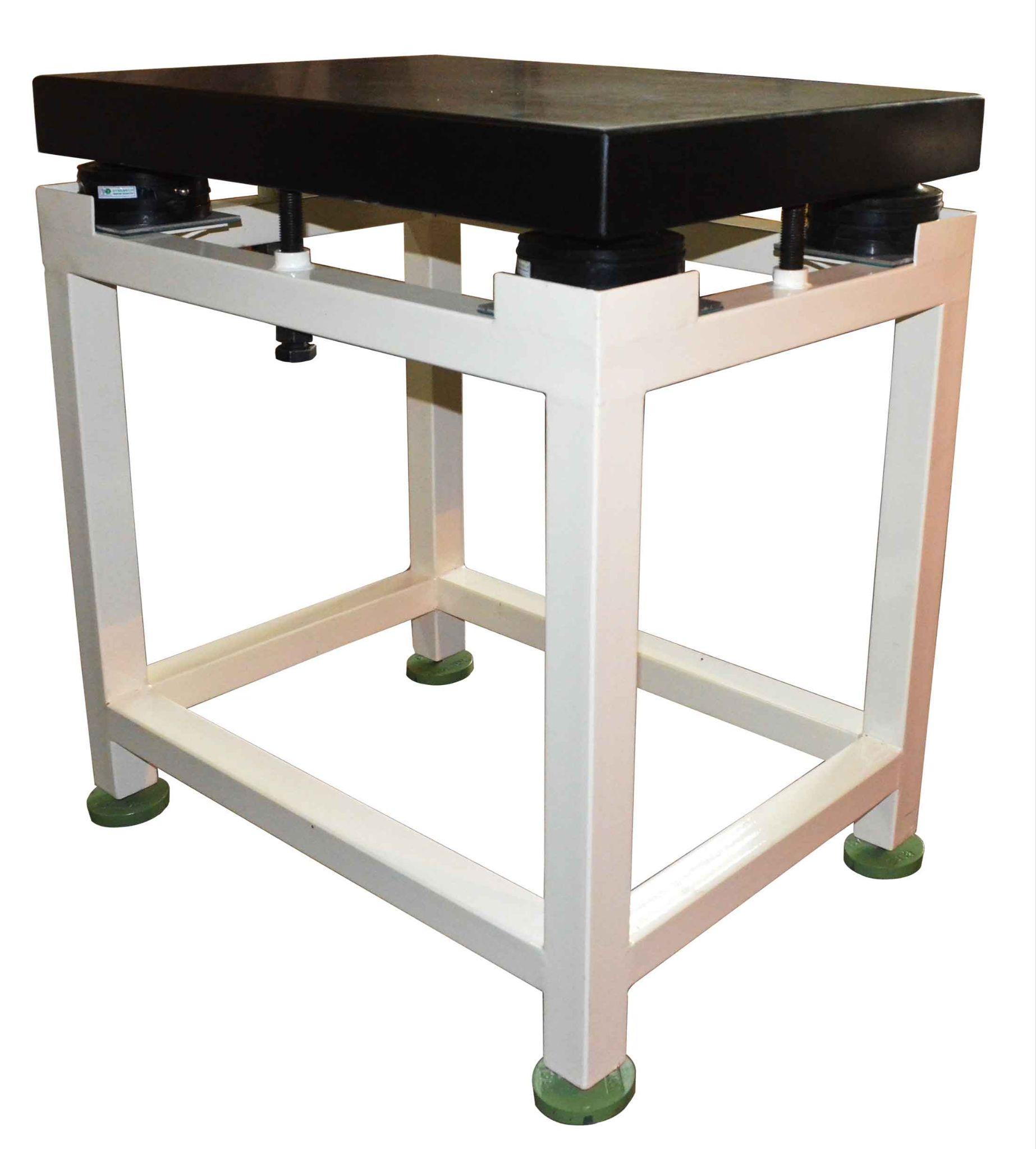

Table Variants Gallery

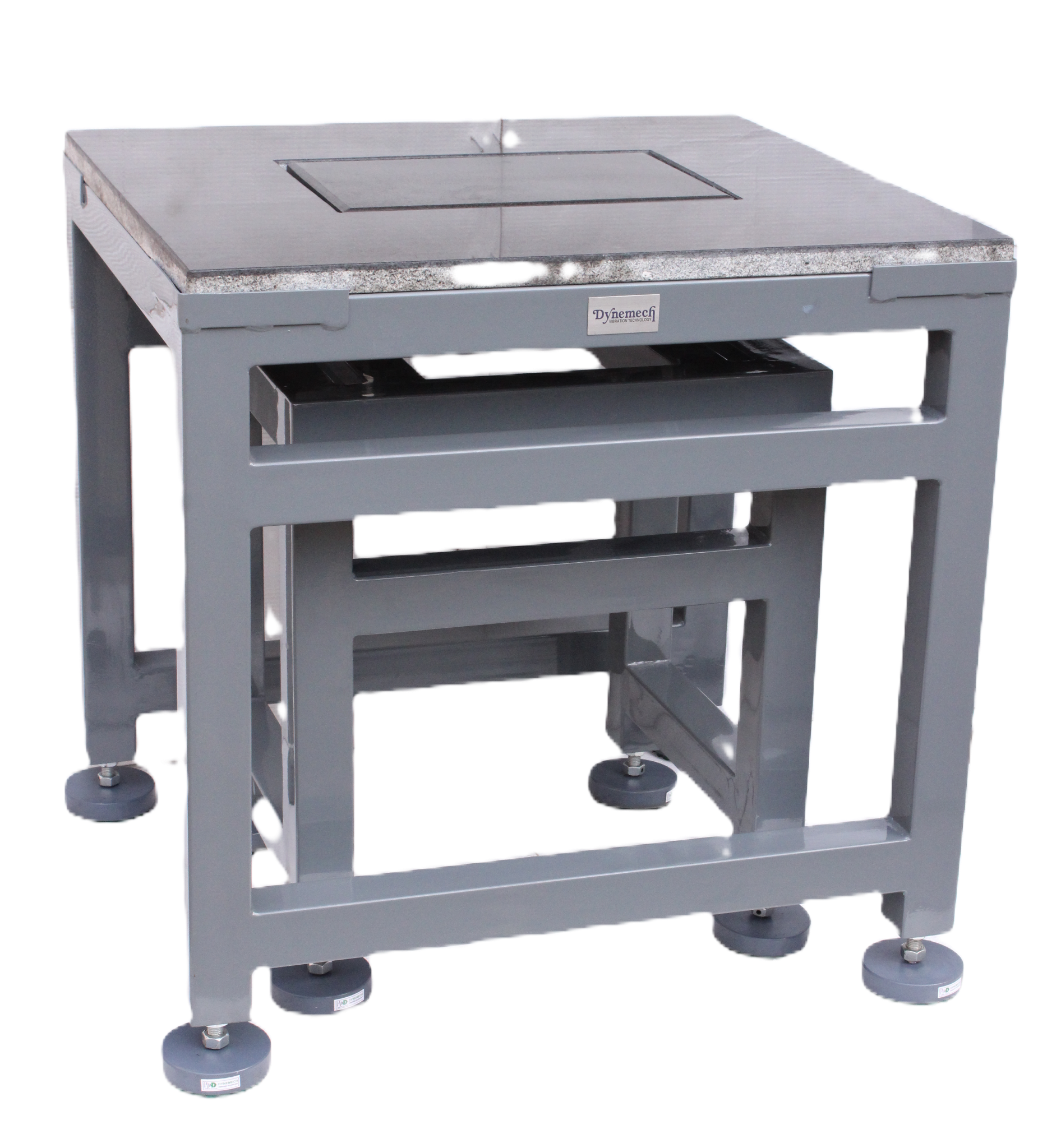

SHOCK RESISTANT/ANTI-VIBRATION TABLES Other Variations (Two Levels of Vibration Isolation)
