Specialty Mounts

200 product variants across 9 series

Series DLKR

DLKR mounts provides a large rectangular surface to support machines along with the levelling adjustment. The longer side is installed parallel to the line of operation of the horizontal force generated by the machine thus ensuring better grip and higher shock isolation. Note : Auto Black or Zinc Coated Bolt variants are available.

2 models 4000–5600 Kg

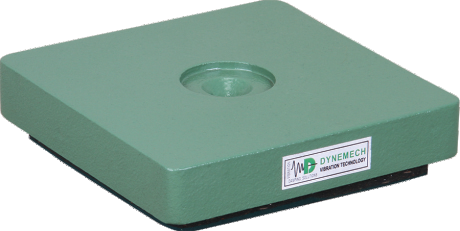

Series SL / SLS

Dynemech Machine Base Mounts Series SL is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. These are suitable for placing in the pocket of the machine base. Dynemech machine base mounts series SLS, developed in stainless steel finds application in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Provide vibration isolation with complete hygienic seal and corrosion resistence.

20 models 7–30 Kg

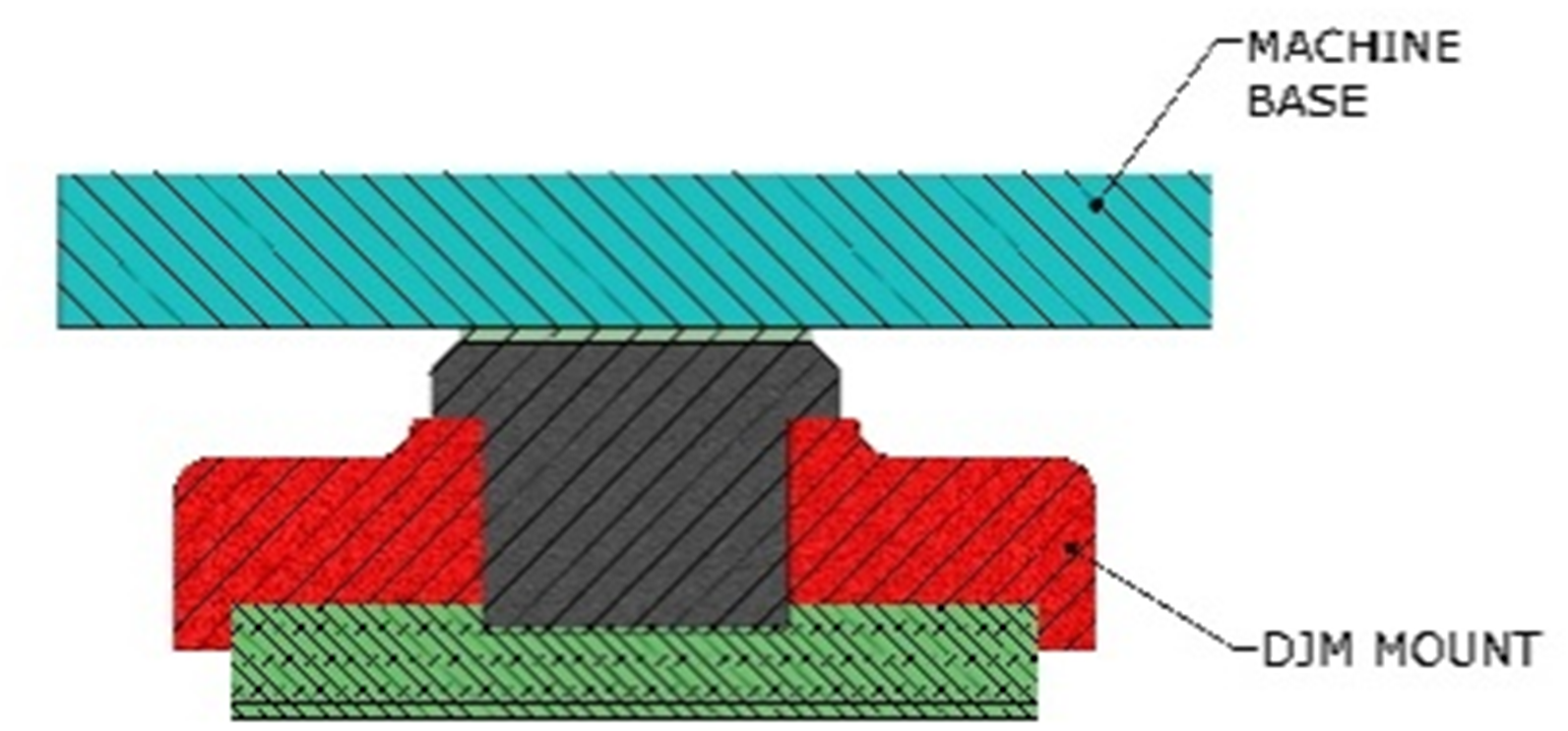

Series DJM

45 models 440–2500 Kg

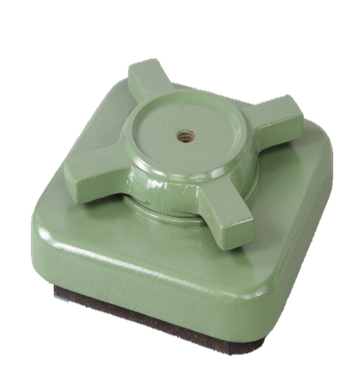

Series DRM

2 models 1000–3300 Kg

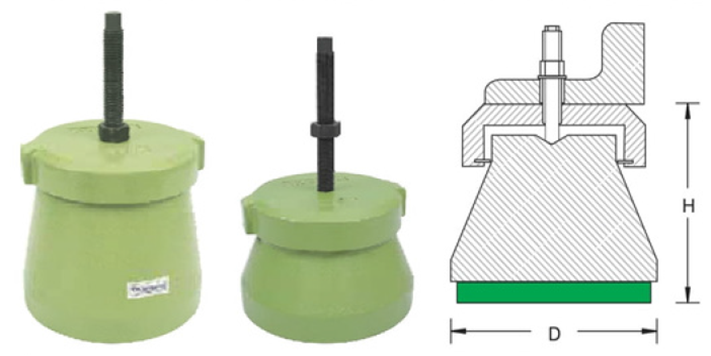

Series DRC

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

24 models 8–45 Kg

Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Series DR

DYNEMECH Series DR, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

30 models 8–45 Kg

Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Series DRS1

25 models 300–3450 Kg

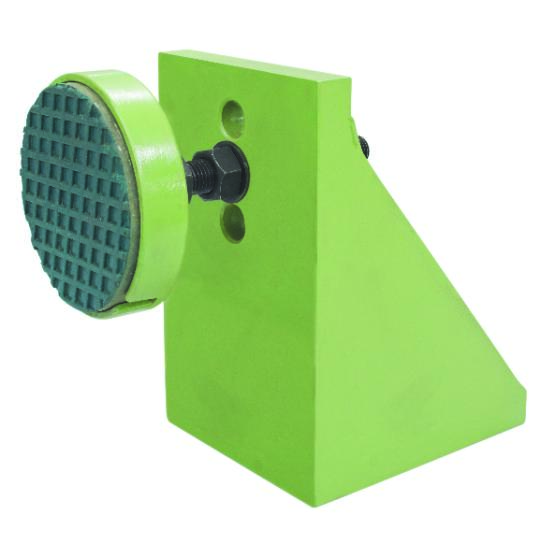

Series DTXL / DML

Note : Bolt sizes available as optional accessories for Texl Foot Mounts.

17 models 125–500 Kg

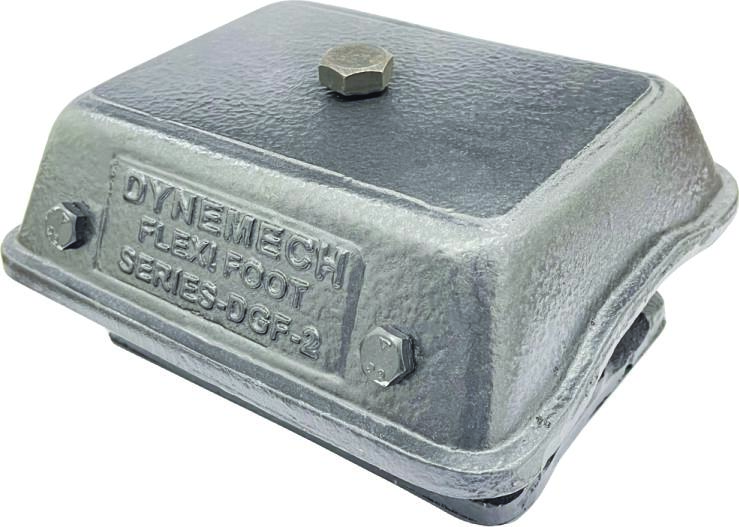

Series DGF

Dynemech Flexi Foot Mounts, Series DGF is well suited for machines requiring vibration damping in both compression and shear. An anti skid plate is provided in the base of the mount to prevent machine walking. These mounts can also be anchored to the floor through the holes provided in the base for machines producing high unbalance forces.

35 models 6–7 Kg
