Screw Support Mounts
251 product variants across 8 series
Series DLC-U-SF
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Applications: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Series DLC
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

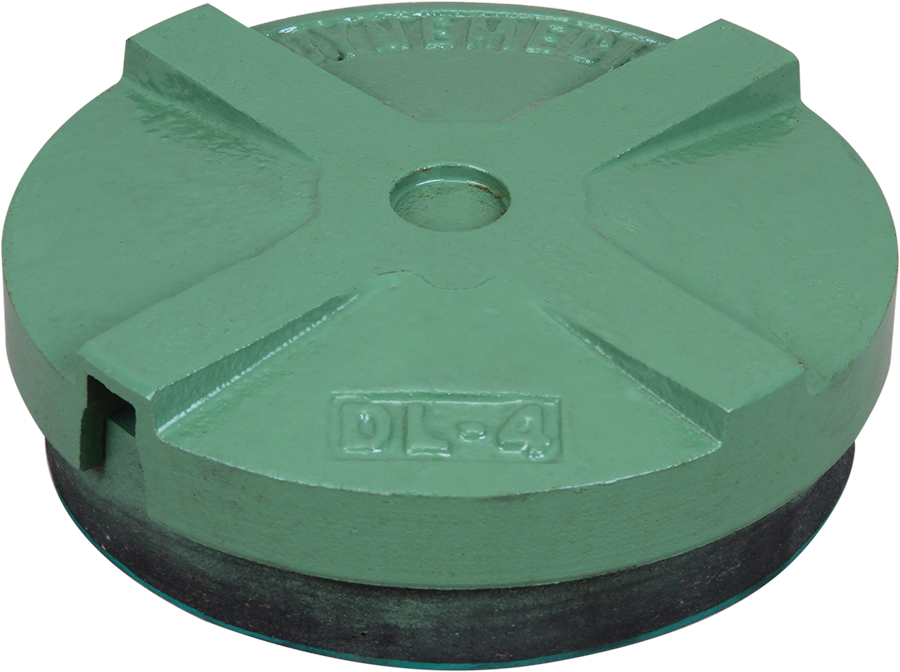

Series DL / DLS
Dynemech DL Series Mounts is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base. Dynemech DLS series mounts, developed in stainless steel finds application in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Provide vibration isolation with complete hygienic seal and corrosion resistance.
Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

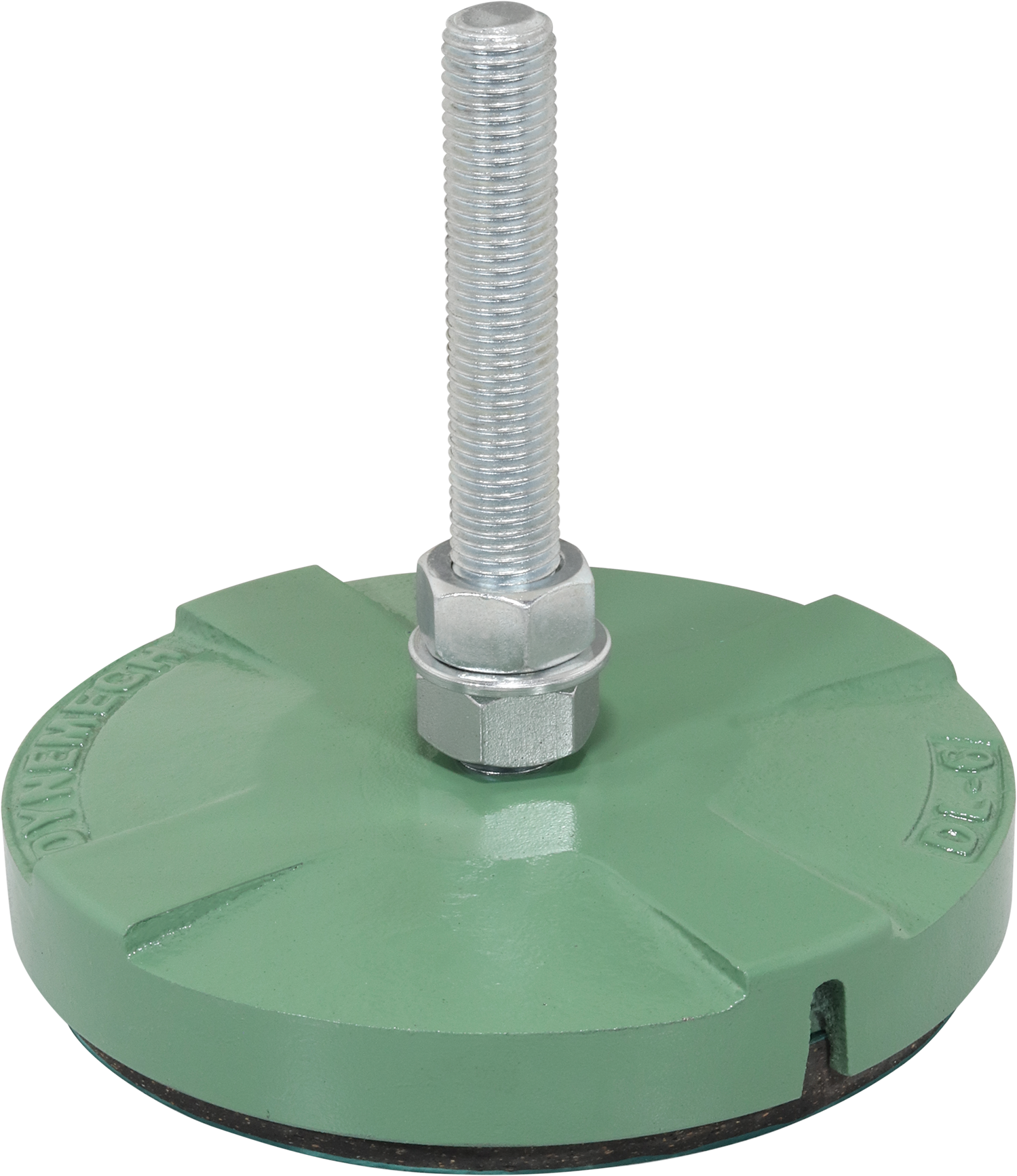

Series DLM / DLMS
Dynemech DLM/DLMS series mounts, developed in steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. the flexible levelling screw accomodates uneven/sloped surfaces environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Applications: Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.

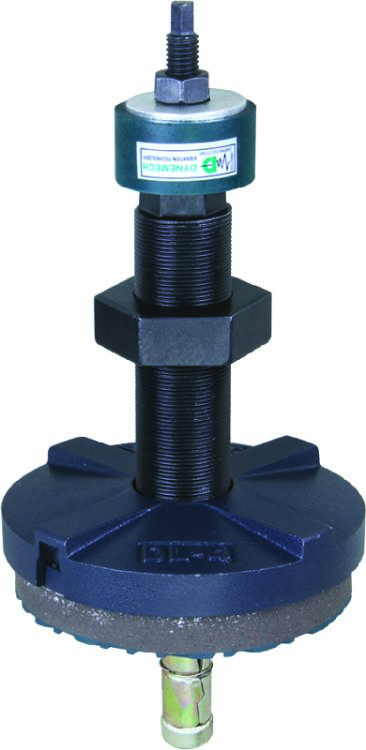

Series DLT
Dynemech DLT series mounts are used in the machines which must be anchored to the floor along with levelling and vibration reduction. Bolts with thru holes are provided in the machine foot, mount and anchored in the floor nut. an insulating disc is provided between the nut and the machine foot to prevent vibration from transmitting in the floor via the bolt. the dimple and the thru hole in the mount are provided as per the bolt specifications of the machine. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Applications: Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.

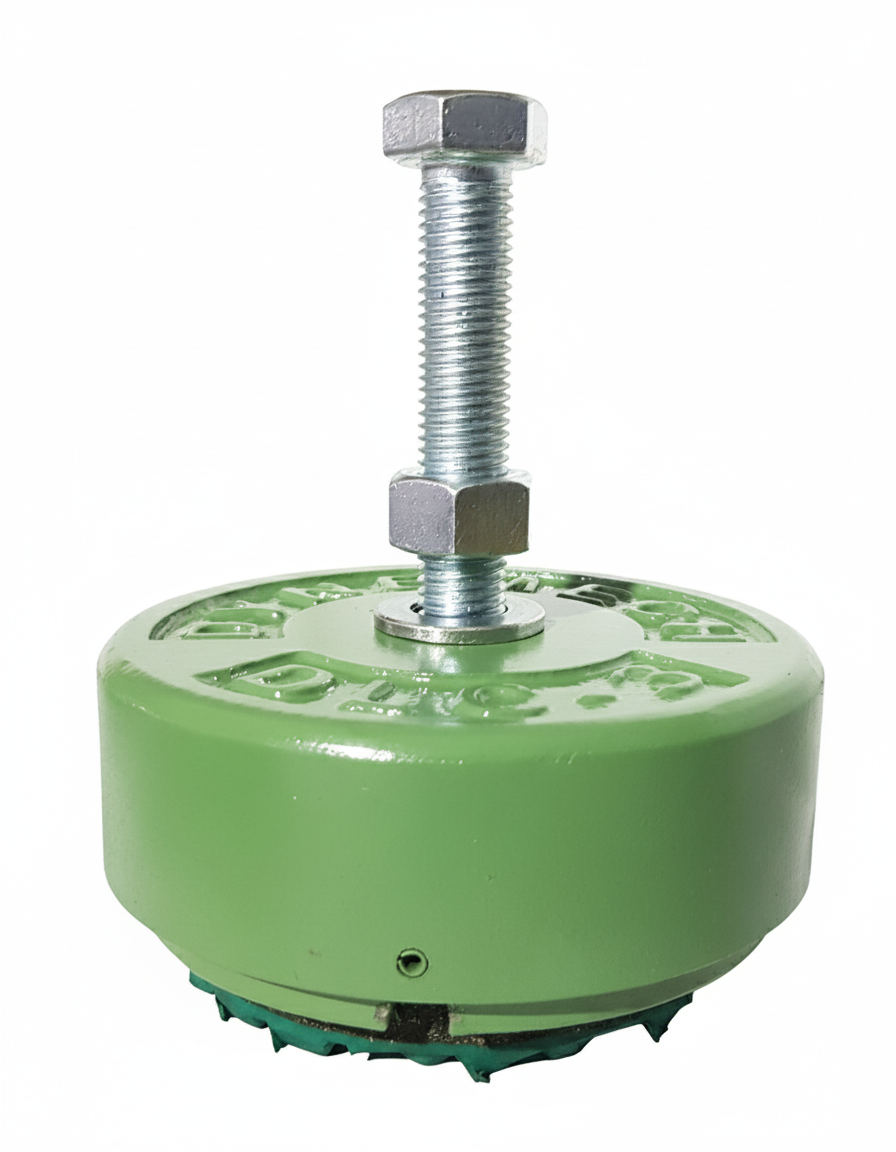

Series DLC-p2-G
SCREW SUPPORT MOUNTS Series DLC-p2-G-05 Screw Support Levelling Mounts The various presses, shears, stamping or moulding machines in metal processing shop floor generally generate vibrations that disturb the surroundings. Dynemech Press Mount series DLC-p2-G-05 provides effective isolation of impact and operating vibrations. The customized insulation plate Series DLC-p2-G-05 engineered with special profile ensures higher grip and higher vibration isolation for impact generating machine, having medium range of natural frequency.
Applications: Suitable for passive vibration control of Measuring & Testing Machines; maintains machine stability along the vibration reduction.
Series DLK-LP
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.
Applications: Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.

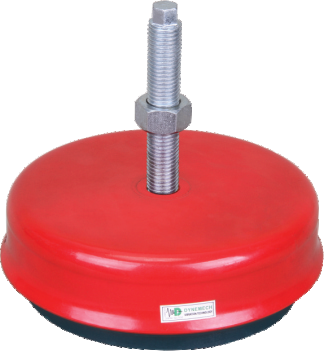

Series DLK
Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.
Applications: Applications
