Wedge Mounts
166 product variants across 9 series
Series DF
Dynemech Wedge mounts, Series DF are designed for industrial machine tools that require precision levelling assembled with respective Dynemech Insulation Plates. Top anti skid plate Da2 & bottom insulation plate Du.
Applications: Top anti skid plate Da1 & bottom insulation plate Dp2.

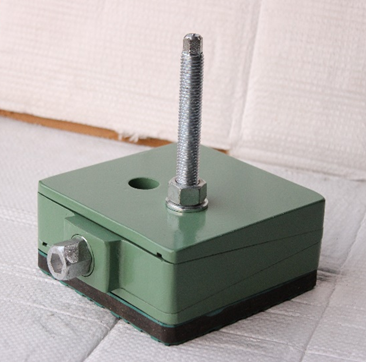

Series DB
Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator. Applications: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Applications: Applications: Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.

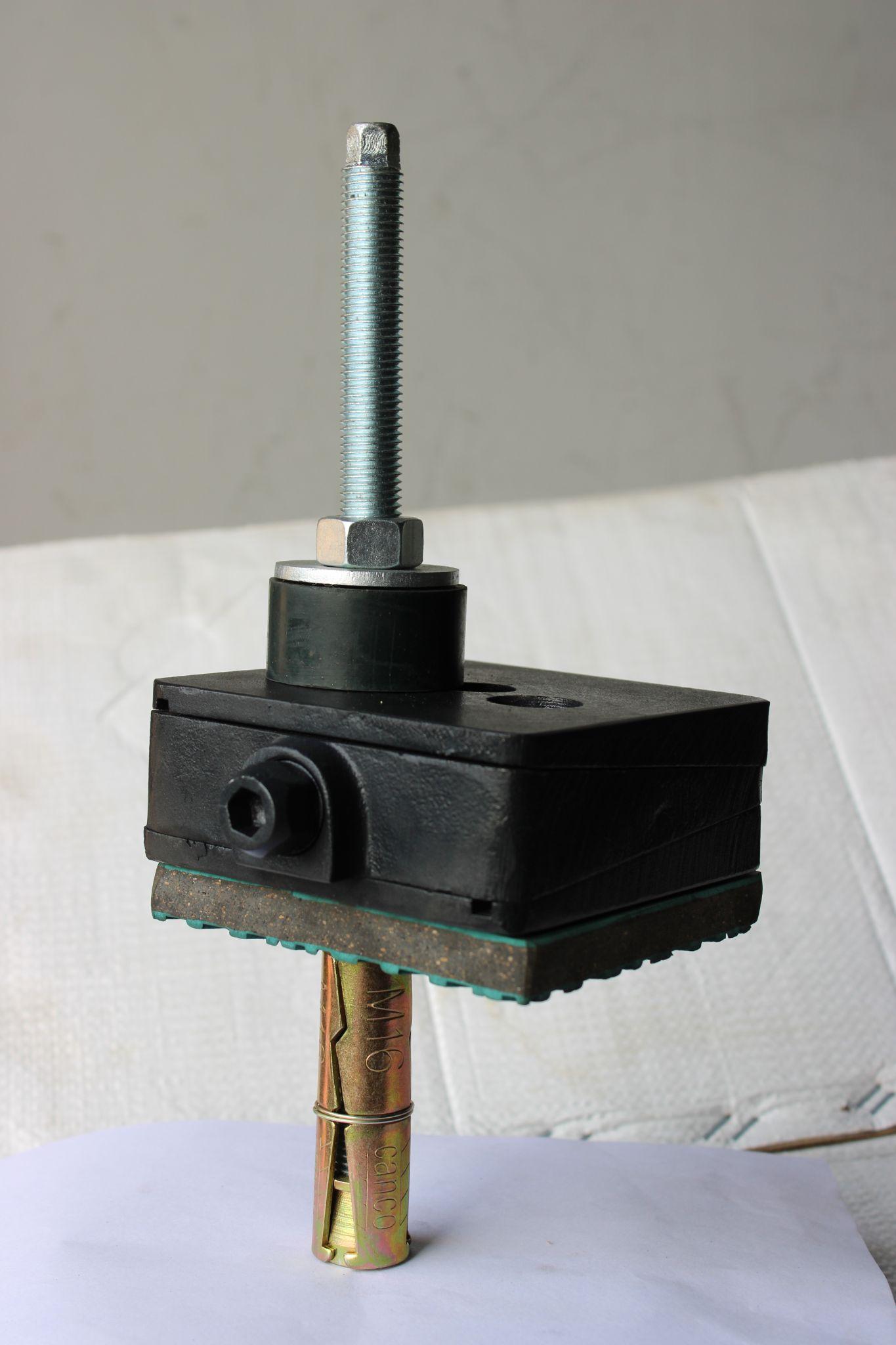

Series DT
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator. Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Series DFH
Dynemech's Series DFH mounts are sturdy in construction and installed as free standing. They are designed by very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines,Shaper, Printing and Textile Machines etc.
Applications: Forging Hammers, Heavy Gen sets, Heavy Industrial machine, Test Rigs, Heavy presses etc.

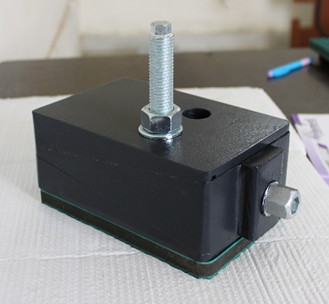

Series DBH
Dynemech's Series DBH mounts are sturdy in construction, Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Applications: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

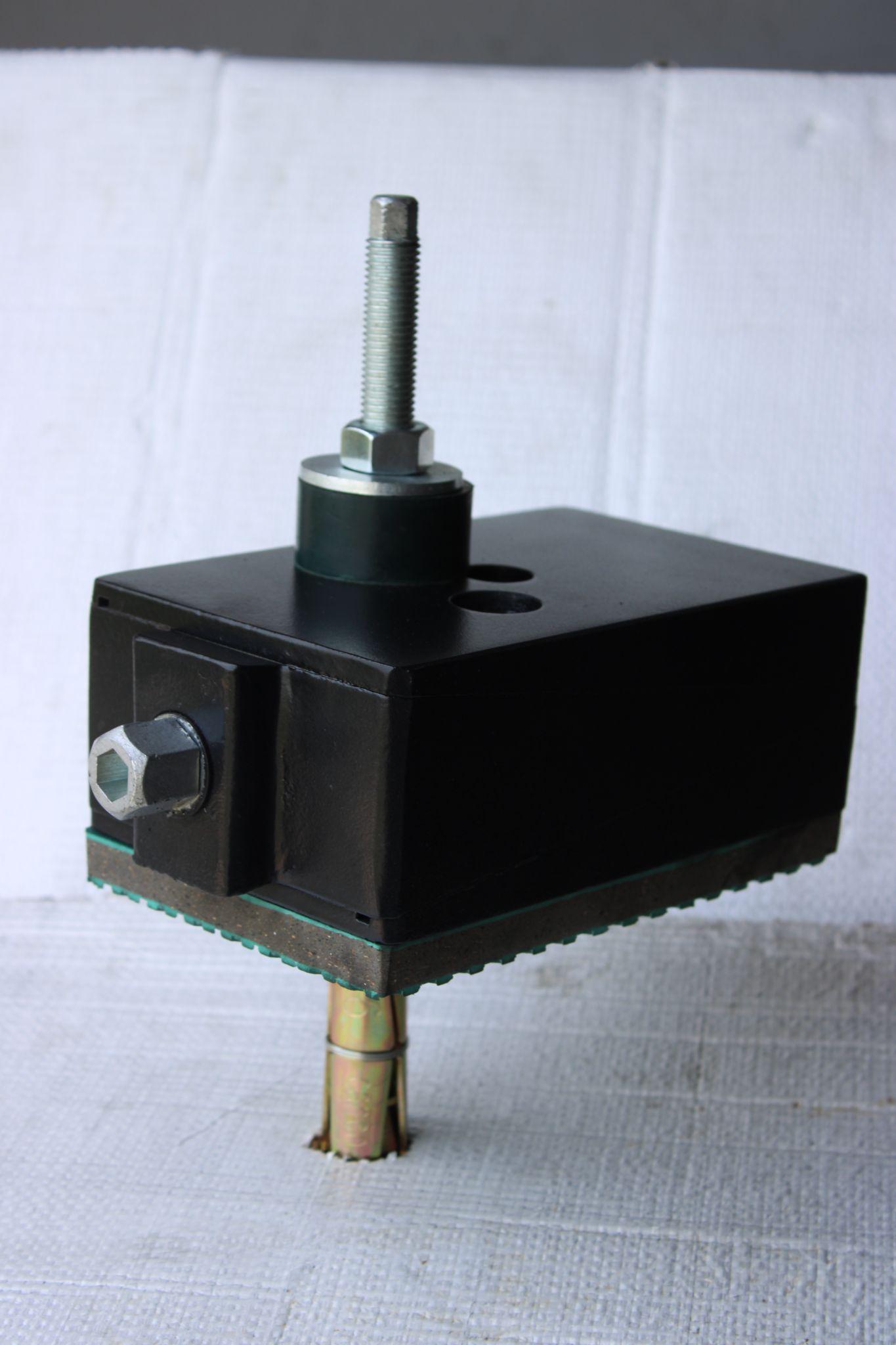

Series DTH
Dynemech's Series DTH mounts are sturdy in construction. Designed for machine with high axial dynamic forces and must be anchored to the ground high levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machine for Machines with high vertical impact.

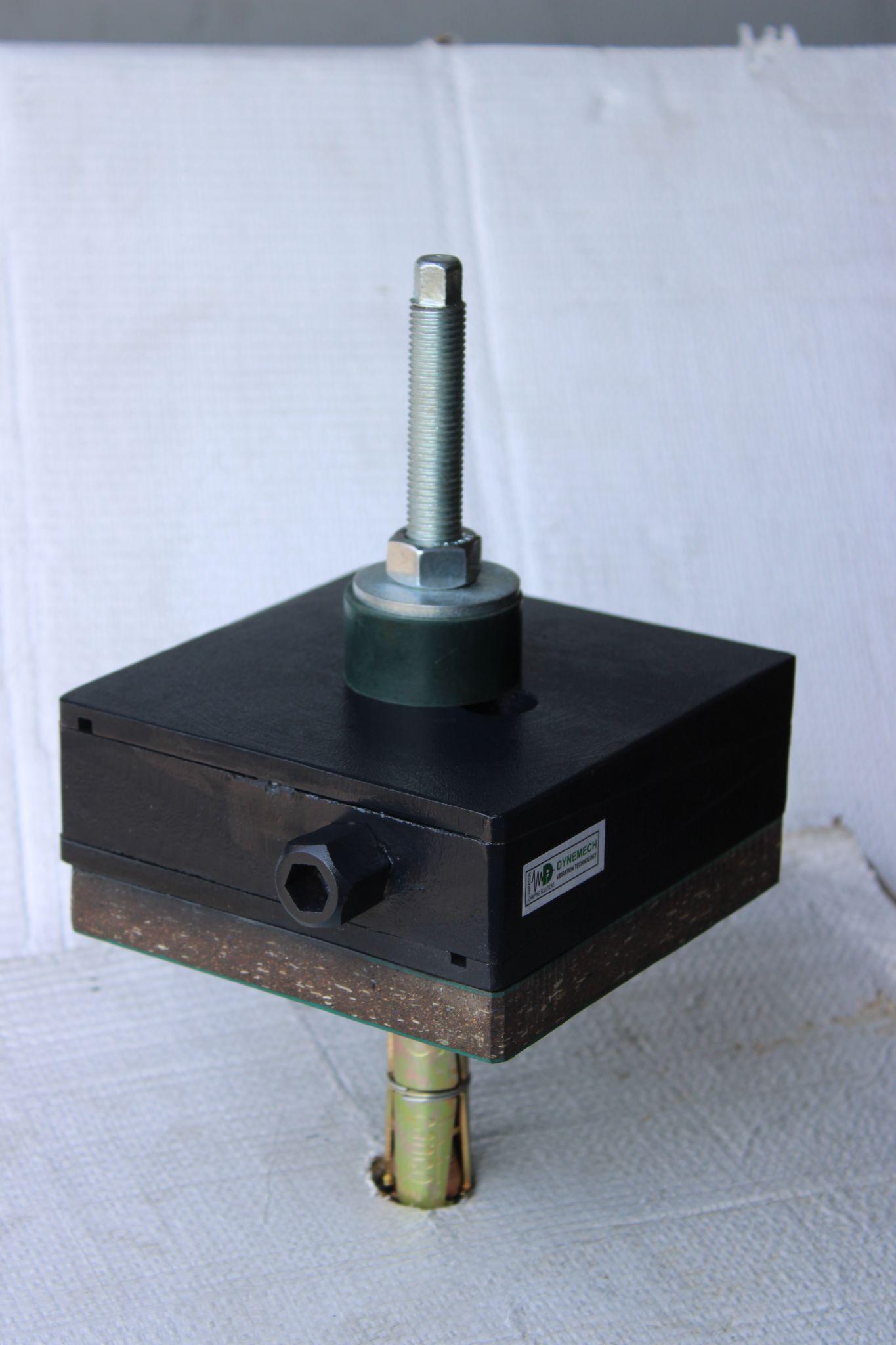

Series DTO
WEDGE MOUNTS, Series DTO (Centred Hole-Bolt Through) Dynemech Wedge Mount, Series DTO is designed for machine which are top heavy or have eccentric motion or machines which must be anchored to the ground. Boring machine, drilling and milling machines, machining centres, special purpose machines, long lathes, long planers, power presses etc.
Applications: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shapper, Printing and Textile Machines etc.
Series DTSP
WEDGE MOUNTS, Series DTSP Bolt Thru with Spherical Positioners Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

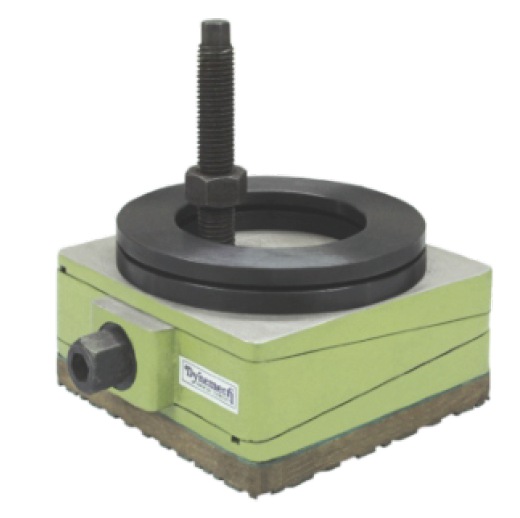

Series DBSP
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
